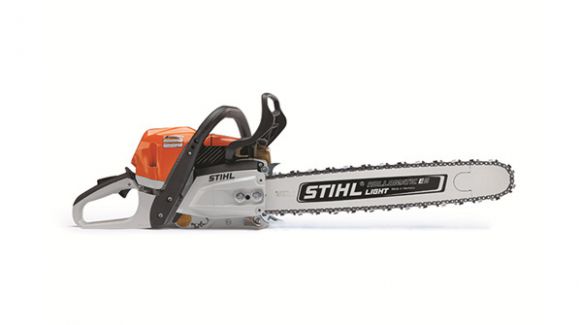

Stihl MS 400 C-M
Features
- Magnesium Alloy Piston - The magnesium alloy piston is lighter in weight than equivalent-size aluminum alloy pistons.
- Excellent Power-to-Weight Ratio (12.8 lbs./5.4 bhp) - Thanks to innovative engineering and construction, the MS 400 C-M delivers an excellent power-to-weight ratio.
- Modern Design - The modern design of the MS 400 C-M is an aesthetic reflection of the power and innovation this saw delivers.
- Lightweight (12.8 lbs.) - The MS 400 C-M professional chainsaw is designed to deliver lightweight performance and jobsite productivity.
- STIHL M-Tronic™ - This product features M-Tronic™ (M) - a new generation of Intelligent Engine Management that eliminates the low and high speed carburetor adjustment screws, compensates for dirty air filter and changes in elevation and fuel quality for optimum engine power at all times.
- STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
- Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
- STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
- Winter/Summer Shutter - The Winter/Summer Shutter allows the carburetor to operate at optimum temperature year-round and helps to prevent carburetor icing when working below 50°F (10°C).
- Adjustable Automatic Oiler - The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
- Translucent Fuel Tank - The semi-transparency allows operators to easily check the fuel level before starting work.
- Bumper Spikes - These spikes prevent pull-in and provide better control, making cutting easier.
- Decompression Valve - The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
- Pre-Separation Air Filtration System - This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance.
- Side-Access Chain Tensioner - The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
- Master Control Lever™ - The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
- Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
- Toolless Fuel and Oil Caps with Retainers - Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
- Throttle Trigger Lock - See it in action!
- Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Specifications
POWER SOURCE | Gas |
POWERHEAD WEIGHT | 12.8 lbs. |
GUIDE BAR LENGTH (Recommended) | 20 in. |
OILOMATIC® CHAIN | 3/8" RS3 |
CHAIN OIL CAPACITY | 11 oz. |
ENGINE POWER | 5.4 bhp |
FUEL CAPACITY | 20.3 oz. |
DISPLACEMENT | 66.8 cc |
Note: STIHL recommends #3624(33 RS3 72) OILOMATIC® Saw Chain and 20” 3003 008 8921 Ematic™ guide bar combination. The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on. Compatible guide bar ranges: 16" to 25".
