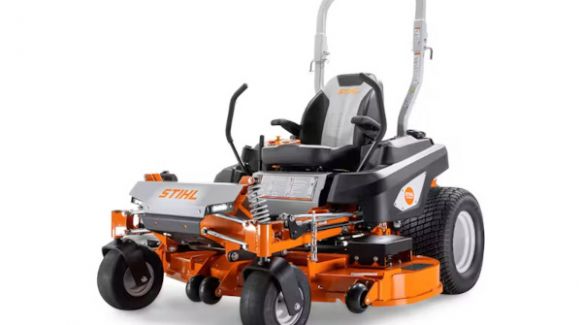

Stihl RZ 760i K
![](/assets/Uploads/_resampled/CroppedImage582325-Stihl-RZ760i-K-Y24.jpg)
Features
- Kawasaki 26 hp EFI Engine with Electronic Throttle Control - The STIHL RZ 752i K and STIHL RZ 760i K feature a Kawasaki Electronic Fuel Injection (EFI) engine with engine throttle control which provides fuel-efficient operation.
- Commercial-Grade Hydro-Gear® ZT-4400 Transaxles - Hydro-Gear® ZT-4400 transaxles enable ten mph forward ground speed and five mph in reverse, helping allow for smooth and efficient cutting.
- Heavy-Duty 8” Cast Iron Greaseable Mower Deck Spindles - The STIHL RZ 700 Series’ eight-inch cast iron greaseable mower deck spindles are easy to maintain.
- Deluxe Seat with Armrests - Deluxe seating includes armrests to ensure a comfortable ride throughout the job.
- Large Fuel Capacity - With a fuel gauge that is visible from the operator's seat, not only can users monitor fuel level and experience fuel coverage for large jobs, but the wide opening also makes fueling easy.
- Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers - Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
- Independent Front Suspension with Mower Deck Height Compensation - Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
- Swingarm Rear Suspension with Shock Absorbers - The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
- Efficient Two-Belt Mower Drive System - Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
- Two USB-A Ports - Two USB-A ports provide 3.15 amps of power to charge devices.
- Roll Over Protection System (ROPS) - The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
- Flip-Up Floor Pan - Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
- Foot-Operated Cutting Height - Users can easily adjust the cutting height while seated.
- Dual-Function Hour Meter - Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
- Flexible Side Rubber Discharge Chute - Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
- Integrated Cup Holders - Cup holders conveniently keep drinks secure and within reach.
- Trailer Hitch - This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments.* *Accessories and attachments sold separately.
- Made in America - A majority of STIHL products sold in America are made in America of U.S. and global materials.
Specifications
HORSEPOWER | 26 hp |
FUEL SYSTEM | Electronic Fuel Injection (EFI) |
FUEL TANK CAPACITY | 11 gal. |
DISPLACEMENT | 726 cc |
TRANSAXLES | Hydro-Gear® ZT-4400 |
FORWARD GROUND SPEED | 10 mph |
REVERSE GROUND SPEED | 5 mph |
DECK WIDTH | 60 in. |
MOWING HEIGHT RANGE | 1.5" - 5 |
DECK CONSTRUCTION | Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" reinforcement plates on the leading edge |
CUTTING HEIGHT OPTIONS | 13 |
BLADES | 3 - MARBAIN® Hardened |
FRONT TIRES | 13 x 6.5-6 |
REAR TIRES | 24 x 12-12 |
WEIGHT | 1,389 lbs. |
POWER SOURCE | Gas |
ENGINE GOVERNOR | Electronic Throttle Control |
SPINDLE SHAFT DIAMETER | 1 in. |
SPINDLE BEARINGS | 2.5" x 1" Dual Ball Bearing |
SPINDLE HUBS | 7.9" Cast Iron & Greaseable |
USB AMPERAGE | 3.15 A |
FRONT SUSPENSION TRAVEL | 2.68 in. |
REAR SUSPENSION TRAVEL | 2.68 in. |
