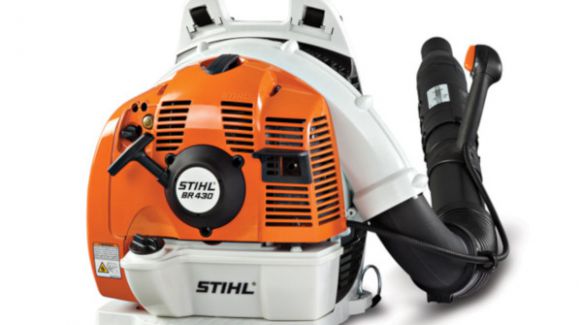

Stihl BR 430

Double tap to zoom



Features

  • STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
  • Compact, Ergonomic Design - The compact, ergonomic design provides more comfortable use.
  • Throttle Trigger Lock with Built-In Momentary Stop Switch - The built-in stop switch allows the user to turn off the engine with a simple press of the button or lever. When the engine is off, the throttle lock automatically returns to the “start” setting. Your power tool will be ready to be started when you’re ready to get back to work.
  • Powerful Low Exhaust Emission Engine - A powerful low exhaust emission engine saves users fuel and operating costs without losing the power they count on to get the job done.
  • Anti-Vibration System - The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
  • Soft-Grip Handle - This handle design provides a secure and comfortable grip.
  • Simplified Starting Procedure - Saves the user time and reduces the chance of flooding the engine when starting.
  • Purge Pump Primer - The purge pump primer feature enables the user to prime the carburetor with fuel, enabling easier starting. The purge pump primer is designed in a way that the operator cannot flood the machine by priming the carburetor too many times. Flooding the engine is still possible if the choke is not removed after the engine fires.
  • High-Tech Polymer Housings - Housings are lightweight, withstand greater impact, and are corrosion-resistant.

Specifications

POWER SOURCE Gas
WEIGHT 22.3 lbs.
BLOWING FORCE IN STANDARD MODE 26 Newtons
SOUND PRESSURE RATING 76 db(A)
MAX. AIR VELOCITY 219 mph
AIR VOLUME AT NOZZLE 500 cfm
ENGINE POWER 3.9 bhp
FUEL CAPACITY 57.5 oz.
DISPLACEMENT 63.3 cc

Note: Newton is the force needed to accelerate 1 kg of mass at the rate of 1 m/sec². Tested in accordance with ANSI B175.2 standard.
