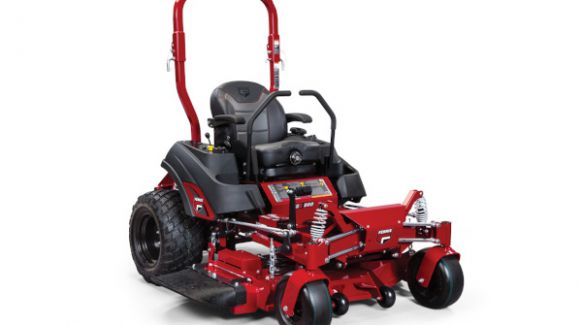

Ferris 5902084
Features
NEW! OilXtend™
Boosts productivity and minimizes downtime by 250 hours - 2.5 times longer than the industry standard. (5902172 only)
NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
NEW! USB Port
12V-60V, USB Type A & C located on the dash panel for easy access and charging.
EFI-ETC Engine Technology
Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.
iCD™ Cutting System
iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).
ForeFront™ Suspension System
The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Integrated Transmission
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Specifications
Model Number | 5902084 |
Engine Brand | Briggs & Stratton® CXi |
Engine Power Rating * | 27 |
Displacement (cc) | 810 |
PTO | Electric |
Cylinders | 2 |
Starter | Electric |
Fuel Type | Gasoline |
Fuel Tank Capacity (gal) | 5.5 |
Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank |
Cutting Width (in) | 52 |
Cutting Height (in) | 1.5 - 5 |
Spindles | Aluminum Greaseable |
Deck Construction | iCD™ Cutting System, 2-Belt |
Suspension | ForeFront™ Suspension System |
Transmission | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
Drive Axles (in) | 1.125 |
Caster Tires (in) | 13 x 6.5-5 |
Drive Tires (in) | 23 x 10.5-12 |
Ground Speed-Fwd (mph) | 0 - 10 |
Ground Speed-Rev (mph) | 0 - 5 |
Overall Length (in) | 81 |
Overall Width (in) Deflector Down/Deflector Up | 65 / 57 |
Dry Weight (lbs) | 1206 |
Seat Package | Mid-back suspension seat with adjustable arm rests |
Certified Roll-over Protection System | 180° foldable |
Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
Parking Brake / Safety Circuit | Hand operated internal transaxle brake |
Engine Configuration | Briggs & Stratton® |
Engine Fuel Type | Gasoline |
