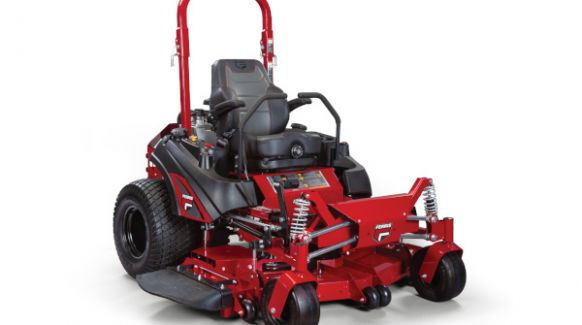

Ferris 5902067

Double tap to zoom



Features

NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.

NEW! USB Port
12V-60V, USB Type A & C located on the dash panel for easy access and charging.

ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

Drive System
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

Hercules™ II Cast-Iron
Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Vanguard Electronic Throttle Control
This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)

Specifications

Model Number 5902067
Engine Brand Vanguard™ BIG BLOCK™
Engine Power Rating * 36
Displacement (cc) 993
PTO Electric
Cylinders 2
Starter Electric
Fuel Type Gasoline
Fuel Tank Capacity (gal) 11
Hour Meter/Instrumentation Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in) 60
Cutting Height (in) 1.5 - 5
Spindles iCD™ Cutting System, 2-Belt
Deck Construction iCD™ Cutting System, 2-Belt
Suspension ForeFront™ Suspension System
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in) 1.375
Caster Tires (in) 13 x 6.5-6
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-5
Overall Length (in) 84.5
Overall Width (in) Deflector Down/Deflector Up 74/65
Dry Weight (lbs) 1496
Seat Package Premium high-back suspension seat with adjustable arm rests, multi-position head rest, adjustable lumbar and back recline
Certified Roll-over Protection System 158° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Hand operated internal transaxle brake
Engine Configuration Vanguard™
