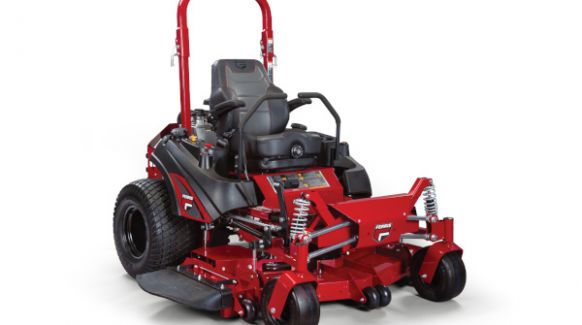

Ferris 5902066
Features
NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
NEW! USB Port
12V-60V, USB Type A & C located on the dash panel for easy access and charging.
ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)
Drive System
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Hercules™ II Cast-Iron
Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.
Vanguard Electronic Throttle Control
This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)
Specifications
Model Number | 5902066 |
Engine Brand | Kawasaki® FX921V |
Engine Power Rating * | 31 |
Displacement (cc) | 999 |
PTO | Electric |
Cylinders | 2 |
Starter | Electric |
Fuel Type | Gasoline |
Fuel Tank Capacity (gal) | 11 |
Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
Cutting Width (in) | 60 |
Cutting Height (in) | 1.5 - 5 |
Spindles | Hercules™ II Cast-Iron |
Deck Construction | iCD™ Cutting System, 2-Belt |
Suspension | ForeFront™ Suspension System |
Transmission | Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans |
Drive Axles (in) | 1.375 |
Caster Tires (in) | 13 x 6.5-6 |
Drive Tires (in) | 26 x 12-12 |
Ground Speed-Fwd (mph) | 0-12 |
Ground Speed-Rev (mph) | 0-5 |
Overall Length (in) | 84.5 |
Overall Width (in) Deflector Down/Deflector Up | 74/65 |
Dry Weight (lbs) | 1496 |
Seat Package | Premium high-back suspension seat with adjustable arm rests, multi-position head rest, adjustable lumbar and back recline |
Certified Roll-over Protection System | 158° foldable |
Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls |
Parking Brake / Safety Circuit | Hand operated internal transaxle brake |
Engine Configuration | Kawasaki® |
