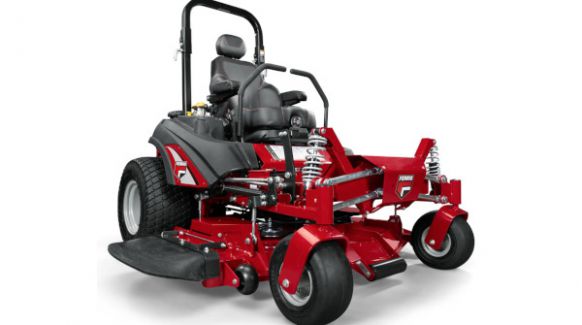

Ferris 5901981 / NOT AVAILABLE

Double tap to zoom



Features

Forefront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Redesigned Rear Bumper
The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.

500 Hour Oil Change
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Drive System
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

Premium High-Back Suspension Seat
Mow in superior comfort with arm rests, multi-position head rest, adjustable lumbar and seat recline

Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".

Hercules™ II Cast-Iron
Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Specifications

Model Number 5901981
Engine Brand Vanguard™ BIG BLOCK™ with Oil Guard
Engine Power Rating * 32 gross hp
Displacement (cc) 896
Cylinders 2
Fuel Tank Capacity (gal) 11
Hour Meter/Instrumentation Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in) 72
Cutting Height (in) 1.5 - 5
Deck Construction iCD™ Cutting System, 2-Belt
Suspension ForeFront™ Suspension System - Front independent with
four control rods paired with large size adjustable coil over
shocks and a rear swing with large adjustable coilover shocks
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain®
Transaxles with 9" cooling fans
Drive Axles (in) 1.375
Caster Tires (in) 13 x 6.5-6
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-5
Overall Length (in) 84.5
Overall Width (in) Deflector Down/Deflector Up 86/74
Dry Weight (lbs) 1579
Seat Package Premium high-back Suspension Seat with arm rests,
multi-position head rest , adjustable lumbar and back recline
Certified Roll-over Protection System 165° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch,
neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Hand operated Internal transaxle brake
