Ferris 5901856 / NOT AVAILABLE

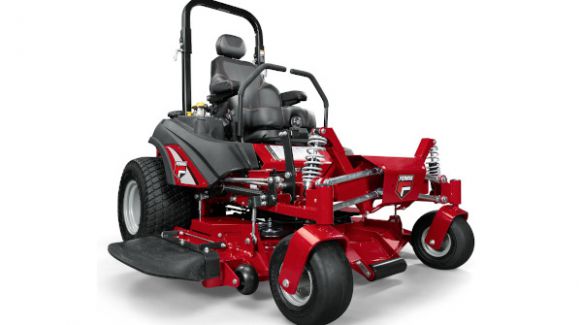

ISX™ 3300 Series 5901856
Overview:
Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system and travel speeds up to 12 mph, the ISX™ 3300 is engineered to increase efficiency and operator comfort.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Forefront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Redesigned Rear Bumper
The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.
500 Hour Oil Change
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
Drive System
Dual, commercial Hydro-Gear ZT-4400 transaxles deliver unmatched power and durability.
Premium High-Back Suspension Seat
Mow in superior comfort with arm rests, multi-position head rest, adjustable lumbar and seat recline
Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Hercules™ II Spindles
Hercules™ II spindles; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.
Specifications
| Model Number | 5901856 |
| Engine Brand | Vanguard™ BIG BLOCK™ EFI with Oil Guard |
| Engine Power Rating * | 37 gross hp |
| Displacement (cc) | 993 |
| PTO | Electric |
| Cylinders | 2 |
| Fuel Tank Capacity (gal) | 11 |
| Cutting Width (in) | 72 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Hercules™ II Cast-Iron |
| Suspension | ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks |
| Drive Axles (in) | 1.375 |
| Caster Tires (in) | 13 x 6.5-6 |
| Drive Tires (in) | 26 x 12-12 |
| Ground Speed-Fwd (mph) | 0-12 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 84.5 |
| Overall Width (in) Deflector Down/Deflector Up | 86 / 74 |
| Seat Package | Premium high-back Suspension Seat with arm rests, multiposition headrest, adjustable lumbar and back recline |
| Certified Roll-over Protection System | 165° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls |
| Parking Brake / Safety Circuit | Hand operated Internal transaxle brake |
