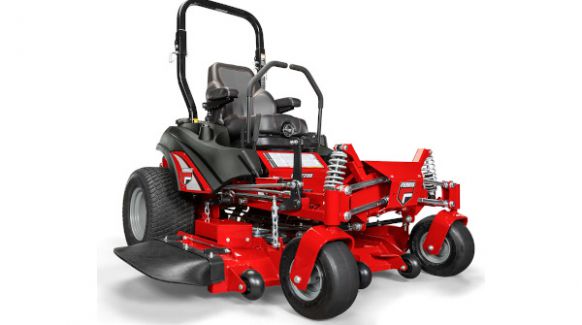

Ferris 5901843 / NOT AVAILABLE
Features
Forefront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Redesigned Rear Bumper
The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.
500 Hour Oil Change
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
Drive System
Dual, commercial Hydro-Gear ZT-4400 transaxles deliver unmatched power and durability.
Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Specifications
Model Number | 5901843 |
Engine Brand | Vanguard™ 810cc EFI with Oil Guard |
Engine Power Rating * | 28 gross hp |
Displacement (cc) | 810 |
PTO | Electric |
Cylinders | 2 |
Starter | Electric |
Fuel Tank Capacity (gal) | 11 |
Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
Cutting Width (in) | 52 |
Cutting Height (in) | 1.5 - 5 |
Spindles | Cast Iron Greaseable |
Suspension | ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks |
Transmission | Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans |
Deck Construction | iCD™ Cutting System, 2-Belt |
Drive Axles (in) | 1.375 |
Caster Tires (in) | 13 x 6.5-6 |
Drive Tires (in) | 24 x 9.5 - 12 |
Ground Speed-Fwd (mph) | 0-10 |
Ground Speed-Rev (mph) | 0-5 |
Overall Length (in) | 83.63 |
Overall Width (in) Deflector Down/Deflector Up | 67 / 57 |
Dry Weight (lbs) | 1319 |
Seat Package | Premium high-back Suspension Seat with arm rests, adjustable lumbar and back recline. |
Certified Roll-over Protection System | 180° foldable |
Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
Parking Brake / Safety Circuit | Hand operated Internal transaxle brake |
