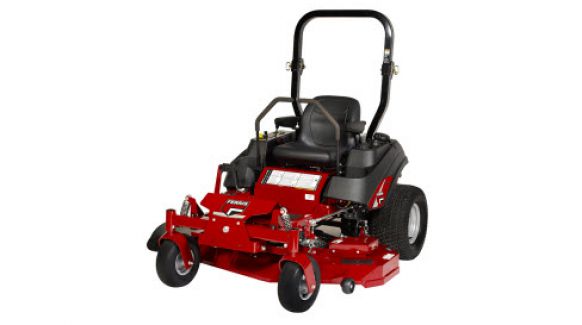

Ferris IS700ZKAV2461 / NOT AVAILABLE

Double tap to zoom



Features

  • Heavy-Duty Bumper
    Heavy-duty bumper protects the engine while also allowing for easy service access.

  • Patented Suspension
    Patented suspension system consists of adjustable rearcoil-over-shocks (shown) and front independent adjustable coil-over-shocks.

  • Ride-On Mower Warranties†
    Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.

  • Exceptional Performance
    Patent-pending steering system delivers exceptionally smooth performance.

  • Integrated Transmissions
    Commercial Hydro-Gear® ZT-3400® transaxles are designed for high performance and are fully serviceable.

  • Easy Access
    Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
  • iCD™ Cutting System
    Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

  • Ergonomic Control Panel
    Ergonomic control panel features cup holder and fuel gauge for operator convenience.

  • Mower Spindles
    Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

  • Acres Per Hour
    Mows up to 5 acres per hour, based on 80% efficiency.

  • Miles Per Hour
    Up to 10 MPH ground speed, reverse 6 MPH.



*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.
†See dealer for warranty details. Refer to engine operator's manual for engine warranty.

Specifications

MODEL IS700ZKAV2461
ENGINE
Engine Brand Kawasaki® FS730V
Rating / Displacement 24 gross hp** / 726cc
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity 5.5 gal.
MOWER
Cutting Width (in.) 61"
Cutting Height (in.) 1.5"- 5.0"
Spindles Aluminum Greaseable
Deck Construction iCD™ Cutting System with professional lawn striper
SUSPENSION
Suspension Adjustable rear coil-over-shocks with pivoting front axle with shocks
DRIVE TRAIN
Transmission Dual, commercial Hydro-Gear®  ZT-3400 transaxles with 7" cooling fans
Drive Axles 1.125"
Caster Tires (in.) 13 x 5-6
Drive Tires (in.) 22 x 11-10
GROUND SPEED
Speeds-fwd. (mph) 0-10
Speeds-rev. (mph) 0-5
DIMENSIONS
Overall Length 81"
Overall Width (in.) deflector down / deflector up (model) 77" / 63.5"
Dry Weight (lbs.) 1113
OPERATOR CONTROL & COMFORT SYSTEMS
Seat Package Mid-back seat with armrests
Certified Roll-over Protection System Standard, 180° foldable
Instrumentation Fuel gauge, Hour meter
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit.
Parking Brake / Safety Circuit Internal transaxles
