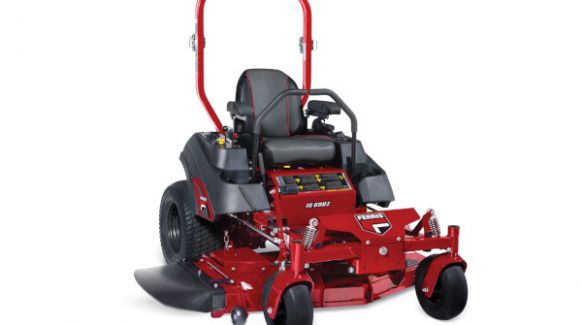

Ferris 5902109
Features
Commercial Grade Power
Commercial Grade Power Briggs & Stratton® CXi Series engines are built for extreme conditions with an advanced debris management system and beefed-up cylinder block structure.
Operator Convenience
Ergonomic riding mower control panel features cup-holder and fuel gauge.
Patented Suspension System
Pivoting front axle plus small shocks and medium rear shocks allows the wheels to follow the ground and improve comfort in a wide variety of conditions.
Exceptional Performance
The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.
Integrated Transmissions
Commercial Hydro-Gear® ZT-3200® (Not shown) transaxles are designed for high performance and are fully serviceable.
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Protection
Heavy-duty bumper protects the engine while also allowing for easy service access.
Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.
Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 4.5".
Acres Per Hour
Mows up to 4 acres per hour, based on 80% efficiency.
Miles Per Hour
Forward ground speed up to 10 mph, reverse 5 mph.
Specifications
Model Number | 5902109 |
Engine Brand | Briggs & Stratton® CXi |
Engine Power Rating * | 25 |
Displacement (cc) | 724 |
PTO | Electric |
Cylinders | 2 |
Starter | Electric |
Fuel Type | Gasoline |
Fuel Tank Capacity (gal) | 5.5 |
Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank |
Cutting Width (in) | 52 |
Cutting Height (in) | 1.5 - 4.5 |
Spindles | Aluminum Greaseable |
Deck Construction | 10-gauge fabricated |
Suspension | Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks |
Transmission | Dual commercial Hydro-Gear® ZT-3200® transaxles with 7" cooling fans |
Drive Axles (in) | 1.125 |
Caster Tires (in) | 13 X 6.5-6 |
Drive Tires (in) | 22 x 11-10 |
Ground Speed-Fwd (mph) | 0-10 |
Ground Speed-Rev (mph) | 0-5 |
Overall Length (in) | 80 |
Overall Width (in) Deflector Down/Deflector Up | 66.75/56.5 |
Dry Weight (lbs) | 964 |
Seat Package | Mid-back seat with arm rests |
Certified Roll-over Protection System | 180° Foldable |
Controls / Safety Group | Adjustable twin fold out 1" tubular steering levers with comfort grip |
Parking Brake / Safety Circuit | Hand-operated internal transaxle brake |
Engine Configuration | Briggs & Stratton® |
