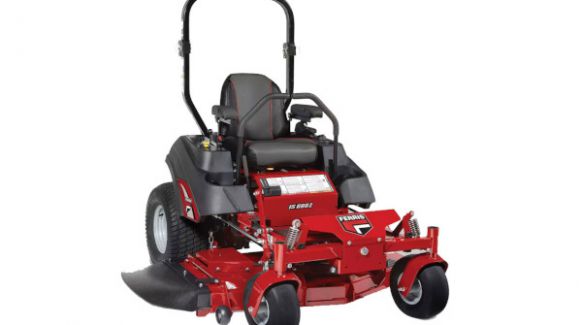

Ferris 5901702 / NOT AVAILABLE

Double tap to zoom



Features

Debris Management
Briggs & Stratton® Commercial Series engines are built with the ultimate in dust and particle filtration, an advanced debris management system and beefed-up cylinder block structure.

Operator Convenience
Ergonomic riding mower control panel features cup-holder and fuel gauge.

Patented Suspension
Suspension system consists of rear coil-over-shocks (shown) and pivoting front axle with shocks.

Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Exceptional Performance
Patent-pending steering system delivers exceptionally smooth performance.

Integrated Transmissions
Commercial Hydro-Gear® ZT-3200® (Not shown) transaxles are designed for high performance and are fully serviceable.

Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Protection
Heavy-duty bumper protects the engine while also allowing for easy service access.

Smooth Controls
Smooth, precision controls last longer as a result of pillow block bearings on control mounts.

Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 4.5".

Acres Per Hour
Mows up to 4 acres per hour, based on 80% efficiency.

Miles Per Hour
Ground speed is up to 10 mph (48") and 8 mph (44"), reverse 4 mph.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Model Number 5901702
Engine Brand Kawasaki® FS600V
Engine Power Rating * 18.5
Displacement (cc) 603
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 5.5
Hour Meter/Instrumentation Dual-function hour meter, fuel level gauge in tank
Cutting Width (in) 48
Cutting Height (in) 1.5 - 4.5
Spindles Aluminum
Deck Construction 10-guage fabricated
Suspension Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
Transmission Dual commercial Hydro-Gear® ZT-3200® transaxles with 7" cooling fans
Drive Axles (in) 1.125
Caster Tires (in) 13 X 6.5-6
Drive Tires (in) 22 x 11-10
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 80
Overall Width (in) Deflector Down/Deflector Up 63/51
Dry Weight (lbs) 942
Seat Package Mid-back seat with arm rests
Certified Roll-over Protection System 180° Foldable
Controls / Safety Group Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit Hand-operated internal transaxle brake
