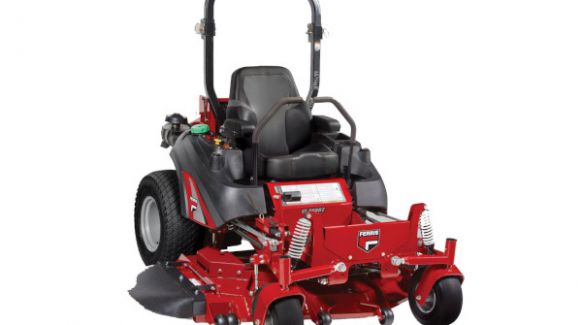

Ferris 5901475

Double tap to zoom



Features

Efficient Engine
Efficient Yanmar™ 3-cylinder diesel engine.

Accessibility
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Patented Suspension System
Consists of adjustable rear coil-over-shocks (shown) and front independent adjustable coil-over-shocks.

Serviceability
Quick-release latches allow for easy access to engine compartment.

Cast-Iron Spindles
Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly.

Foot-Operated Deck Lift
With adjustable pedal, can change cut height in 1/4" increments from 1.75"- 5".

Heavy-Duty Bumper
Heavy-duty integrated rear bumper protects engine compartment.

Smooth Steering
Patented steering system delivers exceptionally smooth performance.

Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Engine Brand Yanmar™ diesel
Engine Power Rating * 24 gross hp
Displacement (cc) 904
PTO Electric
Cylinders 3
Starter Electric
Fuel Tank Capacity (gal) 11
Hour Meter/Instrumentation Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in) 61
Cutting Height (in) 1.75 - 5
Spindles Cast-iron
Deck Construction iCD™ Cutting System
Suspension Independent front control arms with large adjustable coil-over-shocks and a rear swing-arm with large adjustable coil-over-shocks
Transmission Dual commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in) 1.375
Caster Tires (in) 13 x 6.5-6
Drive Tires (in) 24 x 12-12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-6
Overall Length (in) 86.25
Overall Width (in) Deflector Down/Deflector Up 76.75 / 63.5
Dry Weight (lbs) 1606
Seat Package Premium mid-back with arm rests
Certified Roll-over Protection System Standard, 180° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Hand-operated internal transaxle brake
