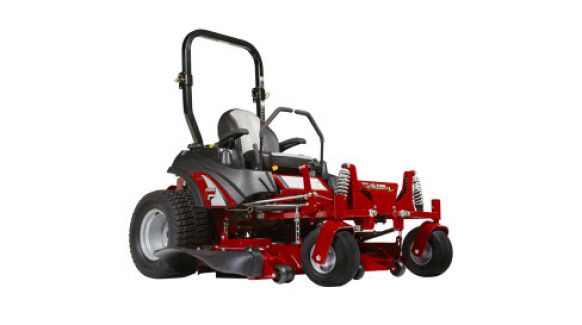

Ferris IS2100ZBV2652 / NOT AVAILABLE
Features
-
Foot-Operated Deck Lift
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.75"- 5". -
Patented Lawn Mower Suspension
Suspension system consists of adjustable rear coil-over-shocks (shown) and front independent adjustable coil-over-shocks. -
Ride-On Mower Warranties†
Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability. -
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service. -
Integrated Lawn Mower Transmission
Fully serviceable commercial Hydro-Gear® ZT-4400™ transaxles deliver power and durability. -
Smooth Controls
Smooth, precision controls last longer as a result of pillow block bearings on control mounts.
-
iCD™ Cutting System
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. -
Acres Per Hour
Mows up to 5 acres per hour, based on 80% efficiency. -
Spindles
Features cast-iron greaseable (61" model shown) or aluminum greaseable (52") spindles. -
Flip-up Seat
Flip-up seat provides easy access to serviceable components. Belt and blade part numbers are referenced under seat. -
Miles Per Hour
Up to 10 MPH ground speed, reverse 6 MPH.
*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.
†See dealer for warranty details. Refer to engine operator's manual for engine warranty
Specifications
MODEL | IS2100ZBV2652 |
ENGINE | |
Engine Brand | Vanguard™ 810cc |
Rating / Displacement | 26 gross hp* / 810cc |
PTO | Electric |
Cylinders | 2 |
Starter | Electric |
Fuel Tank Capacity | 11 gal. |
MOWER | |
Cutting Width (in.) | 52" |
Cutting Height (in.) | 1.75"- 5.0" |
Spindles | Aluminum Greaseable |
Deck Construction | iCD™ Cutting System with professional lawn striper |
SUSPENSION | |
Suspension | Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks |
DRIVE TRAIN | |
Transmission | Dual, commercial Hydro-Gear® ZT-4400™ transaxles with 8.3" cooling fans |
Drive Axles | 1.375" |
Caster Tires (in.) | 13 x 5-6 |
Drive Tires (in.) | 24 x 9.5-12 |
GROUND SPEED | |
Speeds-fwd. (mph) | 0-10 |
Speeds-rev. (mph) | 0-6 |
DIMENSIONS | |
Overall Length | 82.5" |
Overall Width (in.) deflector down / deflector up (model) | 67" / 57" |
Dry Weight (lbs.) | 1223 |
OPERATOR CONTROL & COMFORT SYSTEMS | |
Seat Package | Premium mid-back adjustable seat |
Certified Roll-over Protection System | Standard, 180° foldable |
Instrumentation | Fuel level gauge in each tank, Hour meter |
Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit |
Parking Brake / Safety Circuit | Internal Transaxles |
