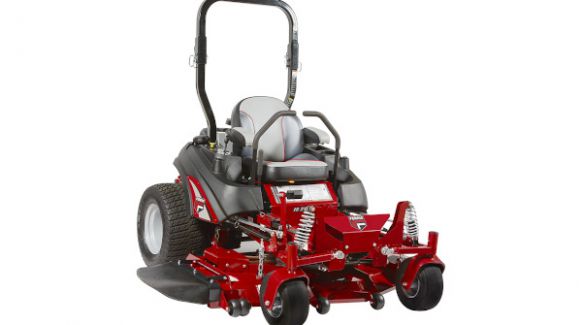

Ferris 5901578

Double tap to zoom



Features

500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Foot-Operated Deck Lift
With the adjustable pedal, change cut height in 1/4" increments from 1.5"-5".

Patented Lawn Mower Suspension
Consists of adjustable rear coil-over-shocks (shown) and front independent adjustable coil-over-shocks.

Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Integrated Lawn Mower Transmission
Fully serviceable commercial Hydro-Gear® ZT-4400™ transaxles deliver power and durability.

Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Smooth Controls
Smooth, precision controls last longer as a result of pillow block bearings on control mounts.

iCD™ Cutting System
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Acres Per Hour
Mows up to 5 acres per hour, based on 80% efficiency.

Spindles
Features cast-iron greaseable spindles.

Flip-up Seat
Flip-up seat provides easy access to serviceable components. Belt and blade part numbers are referenced under seat.

Miles Per Hour
Up to 10 MPH ground speed, reverse 5 MPH.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Engine Brand Vanguard™ 810cc EFI with Oil Guard
Engine Power Rating * 28
Displacement (cc) 810
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 61
Cutting Height (in) 1.5 - 5
Spindles Cast Iron Greasable
Deck Construction iCD™ Cutting System
Suspension Adjustable rear coil-over-shock and front independent adjustable coil-over-shocks
Transmission Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in) 1.375
Caster Tires (in) 13 X 6.5-6
Drive Tires (in) 23 X 12-12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 82.5
Overall Width (in) Deflector Down/Deflector Up 78/61.5
Dry Weight (lbs) 1295
Seat Package Suspension Seat
Certified Roll-over Protection System Standard, 180° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit Internal Transaxles
