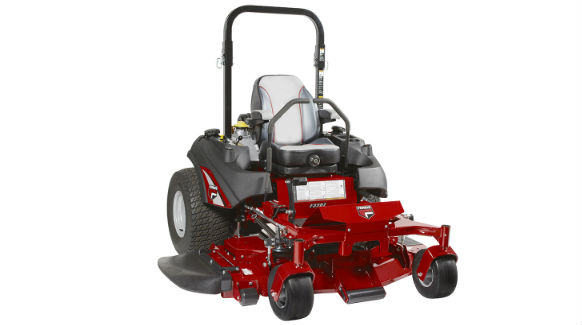

Ferris 5901712 / NOT AVAILABLE
F320Z Series 5901712
Overview:
500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
Powerful Engine
For the most challenging applications, this BIG BLOCK™ EFI Engine has been expertly engineered to deliver the dependability to get more done in less time.
iCD™ Cutting Sy... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
ENGINE FEATURES
- Oil Guard™ System on Vanguard™BIG BLOCK™ EFI engine options
- Two-stage industrial air-cleaner
- Easy-to-use oil drain
- Twin 5.5-gallon rugged, impact resistant fuel tanks with switch for fuel source (11 gallons total)
- Heavy-duty integrated rear bumper protects engine compartment
MOWER DECK
- iCD™ Cutting System• 2-belt drive system that improves belt life and is more dependable
- Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5"
- Hercules™ II Spindles with greaseable bearings for longer usable life
DRIVE TRAIN
- Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles feature 9" cooling fans that assist with repelling debris
- Large turf friendly 26" rear tires for increased traction and performance
- Flat-free caster tires
SPEED
- Ground speed up to 12 mph
OPERATOR SYSTEMS
- Ergonomic control panels feature a cup-holder, storage compartment and fuel gauges for operator convenience
- Comfortable thicker 1" tubular steering control levers
- Suspension seat in our premium high-back design features enhanced bolstering, with adjustable cushioned armrests for added comfort, manually adjusts to operator's height and weight, reclining back and adjustable lumbar support with fore and aft positioning for a custom-like fit
- Flip-up seat
- Removable floor pan provides easy access
Specifications
| Engine Brand | Vanguard™ BIG BLOCK™ with Oil Guard |
| Engine Power Rating * | 32 gross hp |
| Displacement (cc) | 893 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Tank Capacity (gal) | 11 |
| Cutting Width (in) | 72 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Hercules™ II Spindles |
| Deck Construction | iCD™ Cutting System |
| Suspension | N/A |
| Transmission | Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans |
| Drive Axles (in) | 1.375 Tapered |
| Caster Tires (in) | 13 x 6.5-6 Flat-free |
| Drive Tires (in) | 26 x 12-12 |
| Ground Speed-Fwd (mph) | 0-12 |
| Ground Speed-Rev (mph) | 0-6 |
| Overall Length (in) | 81 |
| Overall Width (in) Deflector Down/Deflector Up | 88 / 74 |
| Dry Weight (lbs) | 1439 |
| Seat Package | Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline |
| Instrumentation/Hour Meter | Fuel level gauge in each tank, hour meter |
| Certified Roll-over Protection System | Standard, 165° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls |
| Parking Brake / Safety Circuit | Internal transaxles |
