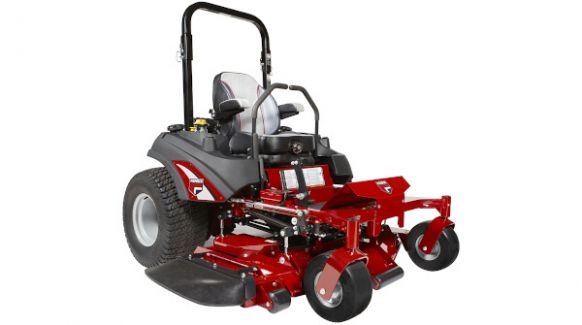

Ferris 5901646

Double tap to zoom



Features

500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Powerful Engine
For the most challenging applications, this BIG BLOCK™ EFI Engine has been expertly engineered to deliver the dependability to get more done in less time.

iCD™ Cutting System
The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Hercules™ II Spindles
Hercules™ II Spindles industrial 10" dia. cast-iron spindle assembly with 1 3/16" dia. shaft and greaseable double row angular contact ball bearings, which can be greased through the convenient top access grease fitting.

Accessibility
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Commercial Transmission
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles deliver unmatched power and durability.

Foot-Operated Deck Lift
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".

Premium High-Back Suspension Seat
Suspension seat with reclining back and lumbar support for optimal comfort.

Traction
Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance and faster cutting speeds.

Ride-On Mower Warranties
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

MODEL 6901646
Engine Brand Vanguard™ BIG BLOCK™ EFI with Oil Guard
Engine Power Rating * 37 gross hp
Displacement (cc) 993
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 72
Cutting Height (in) 1.5 - 5
Spindles Hercules™ II Spindles
Deck Construction iCD™ Cutting System
Suspension N/A
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in) 1.375 Tapered
Caster Tires (in) 13 x 6.5-6 Flat-free
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-6
Overall Length (in) 81
Overall Width (in) Deflector Down/Deflector Up 88 / 74
Dry Weight (lbs) 1439
Seat Package Premium suspension high-back
Hour Meter Fuel level gauge in each tank, hour meter
Certified Roll-over Protection System Standard, 165° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxles
