Ferris 5901883 / NOT AVAILABLE

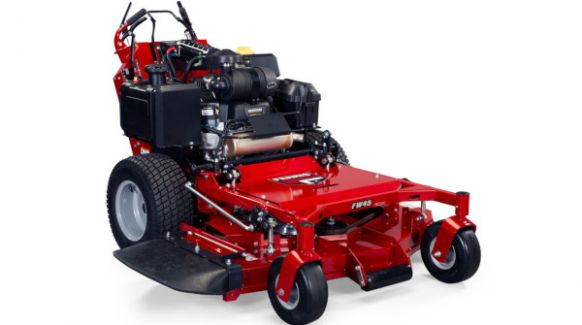

FW45 5901883
Overview:
The all-new Ferris FW45 is built to comfortably withstand the long days of a commercial cutter. Pairing new comfort features like ergonomically-designed parking brakes and cut-height adjusters with user features like easier to access greaseable spindles and enhanced foot pedal support to get the job done feeling good.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Added Power and Performance
Powered by a 28 hp* Vanguard® 810 EFI Engine with Oil Guard™, you will get a 500-hour oil change interval that can reduce maintenance time and costs by 60%**. (Select models)
Hydro-Gear® ZT-3400™ Transaxles
Dual commercial grade transaxles with remote oil coolers that reduce oil temperature by as much as 25% and feature 1.125" tapered axle, forged steel bull gear and steel cut pinion gear for enhanced performance in commercial applications.
Gas Tank Guard
Additional protection has been added to protect the gas tank from obstacles and debris.
Enhanced Foot Pedal Support
Upgraded with dual solid-steel return-to-neutral foot pedals for better user support.
New Spindle Access
We listened closely to our commercial users when considering the enhancements on our redesigned mower deck. The new, improved deck provides a new spindle easy-access slot for faster greasing and accessibility.
Ergonomic Parking Brake
We modified and added an angles parking brake that is pulled into the frame to prevent snagging or bending. This now provides instant access with minimal operator effort to each and engage.
Enhanced Muffler Guard
Enhanced muffler guard has been added to protect the O2 sensor on the EFI Oil Guard models.
Specifications
| Model Number | 5901883 |
| Engine Brand | Vanguard™ 810cc EFI with Oil Guard |
| Engine Power Rating * | 28 gross hp |
| Displacement (cc) | 810 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Tank Capacity (gal) | 5 |
| Cutting Width (in) | 52 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Cast-iron |
| Deck Construction | Fabricated 10-gauge |
| Transmission | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers |
| Drive Axles (in) | 1 |
| Caster Tires (in) | 11 x 4-5 Flat-free |
| Drive Tires (in) | 20 x 8-10 |
| Ground Speed-Fwd (mph) | 0-7 |
| Ground Speed-Rev (mph) | 0-3 |
| Overall Length (in) | Standard: 78.75" |
| Overall Width (in) Deflector Down/Deflector Up | 67 / 57 |
| Dry Weight (lbs) | 814 |
| Seat | N/A |
| Rollover Protection System (ROPS) | Standard, Pistol Grip |
| Instrumentation | Dual-function hour meter, speed indicator |
| Parking Brake/Safety Circuit | Hand operated Internal transaxle brake |
| Safety Group/Controls | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls |
