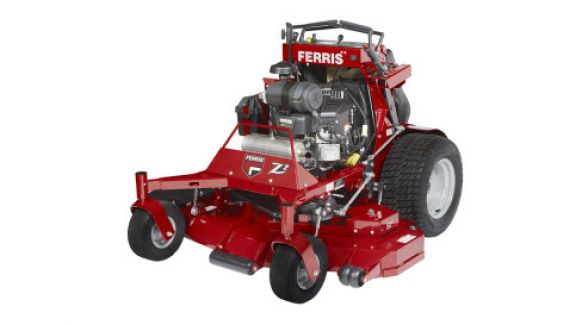

Ferris SRSZ2KAV2661 / NOT AVAILABLE

Double tap to zoom



Features

  • Vanguard™ 810cc EFI engines
    Vanguard™ 810cc engines deliver the optimum power, performance, and efficiency commercial zero-turn mowers need.

  • Suspension Platform System
    The patent pending suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

  • Operator Comfort & Support
    Ergonomically designed thigh pad provides superior operator comfort, especially on hilly terrain.

  • Ride-On Mower Warranties†
    Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.

  • Integrated Mowing Transmissions
    Commercial Hydro-Gear® ZT-3400® transaxles are designed for high performance and are fully serviceable.

  • iCD™ Cutting System
    Innovative iCD™ Cutting System was engineered to product the best possible cut in a multitude of conditions.
  • Speed Control Setting
    The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

  • Fuel Capacity
    Generous 7-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

  • Acres Per Hour
    Mows up to 5 acres per hour, based on 80% efficiency.

  • Cut Height
    Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".

  • Speed
    Up to 10 mph ground speed.



*Rated in accordance with SAEJ1940 at 3600 RPM.
**Rated in accordance with SAE J2723 at 3600 RPM.
†See dealer for warranty details. Refer to engine operator's manual for engine warranty.

Specifications

MODEL SRSZ2KAV2661
ENGINE
Engine Brand Kawasaki® FX801V
Engine Displacement 23.5 gross hp** / 852cc
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity 7 gal.
MOWER
Cutting Width (in.) 61"
Cutting Height (in.) 1.75" - 5"
Deck Construction iCD™ Cutting System with professional lawn striper
SUSPENSION
Suspension Adjustable rear coil-over-shock
DRIVE TRAIN
Transmission Type Dual, commercial Hydro-Gear® ZT-3400 transaxles with 7" cooling fans
Drive Axles 1.125"
Caster Tires (in.) 13 x 5-6 Flat-free
Drive Tires (in.) 23 x 10.5-12
GROUND SPEED
Speeds-fwd. (mph) 0-10
Speeds-rev. (mph) 0-5
DIMENSIONS
Overall Length 72"
Overall Width (in.) deflector down / deflector up (model) 77" / 64"
Dry Weight (lbs.) 998
OPERATOR CONTROL & COMFORT SYSTEMS
Controls Integrated forward & reverse control levers with stabilizer bars, Automatic PTO restart
Safety Group Operator presence in platform, Parking brake safety circuit for starting engine
Parking Brake Internal transaxles
