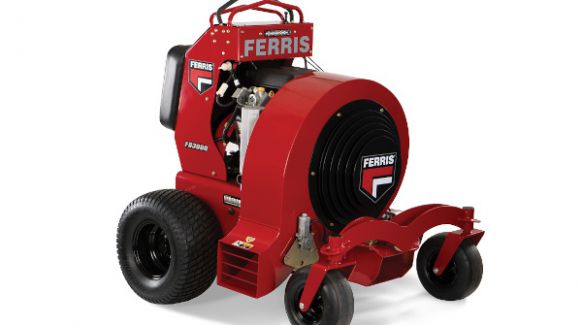

Ferris 5902135

Double tap to zoom



Features

Joystick Deflector Control
The joystick allows the operator full control of the air flow direction – forward, left and right. Pulling back on the joystick closes all deflectors for transport.

Quad Control Handle System™
This system provides automatic return to neutral, integrated operator presence, self-activating parking brake and travel direction control.

Dual Deflector Air Flow System™
The split left deflector system allows the operator to change the angle of the air flow to enhance the deep cleaning of debris.

Unique Blower Housing Design
Pulls air from both sides of the blower housing, increasing power and reducing noise.

Commercial Power
Vanguard® 35 Gross HP* V-Twin engine provides commercial strength power.

LED Light
An integrated LED light in the operator tower allows working and loading into dusk, extending the work day.

Torsion-Mounted Front Axle Assembly
Go over curbs or uneven terrain with ease with the torsion-mounted front axle. Bumps are softened, smoothing out the ride.

3-Way Air Discharge
The right discharge is ideal for deep cleaning or blowing above gravel roads and driveways. The center discharge plumes to the right and is ideal for cart path and trail cleaning. The left discharge has the patented Dual Deflector Air Flow System™ for operator controlled twin air columns. This patented undercut allows for downhill blowing.

Ergonomic Platform and Thigh Pad
A skid-mounted operator platform and ergonomic thigh pad provide excellent operator comfort.

Specifications

Model Number 5902135
Engine Brand Vanguard® V-Twin
Engine Power Rating* 35
Displacement (cc) 993
RPM 2600
Fuel Tank Capacity (gal) 10, w/ fuel gauge
Drive Train Type Dual Hydrostatic
Transaxles Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Number of Speeds Infinitely Variable
Max. Travel Speed (mph) 9
Front Tire Size 13 x 5.5-6, flat-free
Rear Tire Size 22 x 11-10
Air Flow (Cubic ft/min) 7500
Air Speed (mph) 165+
Overall Length (in) 65
Overall Width (in) 45
Overall Height (in) 56
Dry Weight (lbs) 895
Ignition Flywheel Magneto
Solenoid Shift Solenoid Shift
Fuse (amp blade) 30
