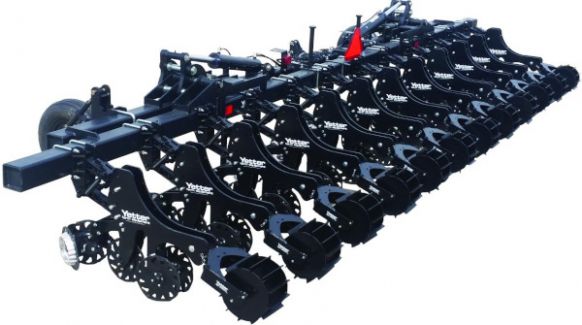

Yetter 3831-101 31' Double-Frame Toolbar
Double-Frame Hydraulic Locking Toolbar 3831-101 31' Double-Frame Toolbar
Overview:
The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
- Can be customized for odd or even row spacing depending on the application of the attachment
- Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
- Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
- Features 5" spacing between front and back bar
- Fits category 3N, category 3 and category 4N hitches
- Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
- Optional rear hitch
- Includes parking stand
Specifications
| Model | 3831-101 31' Double Frame Toolbar |
| Actual Length | 30'7" |
| Folded Width | 16' |
| Weight | 3,000 lbs. |
| Hydraulic cylinders | 5"x24" |
