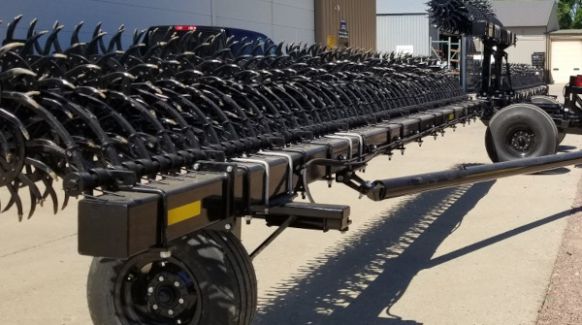

Yetter 3600 Pull-Type Rotary

Double tap to zoom



Features

  • Short- and long-cast arms stagger wheels 7" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Available with a wide array of options to fit the needs of your operation (helper springs, trash guards, and min-till conversion kit)
  • Very fuel-efficient, with low horsepower requirements; can be operated at speeds of 8-10 mph
  • 7" x 7" single-tube toolbar with widths of 50', 54', 60', and 66'
  • Offers a narrow transport width of 11.5'
  • Toolbar flex is plus or minus 7°
  • Requires two hydraulic remotes for operation with external hydraulic-fold cylinder
  • Powder-coat paint for a durable, attractive finish
  • Features hydraulic-folding pull-type toolbar
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

Specifications

  • Hoe wheels: 21" diameter hoe wheels equipped with sealed Gothic arch ball bearing
  • Riveted wheel assembly: 16 forged, self sharpening, spoon-bill teeth
  • Main wheels: Adjustable with on-center spacings (82.5", 88", 90", 98.5", 110", 120")
  • Main tires: 14L-16.1 10 ply with 8 bolt hubs
  • Gauge tires: 9.5L-15SL 8 ply with 6 bolt hubs
  • Wheel spacing: Approximately 3 1/4" centers
  • Down pressure: 18 lbs. with standard springs
  • Safety features: SMV emblem, reflectors, and light kit
