Yetter 3500 Folding
3400/3500 Standard Rotary Hoe 3500 Folding
Overview:

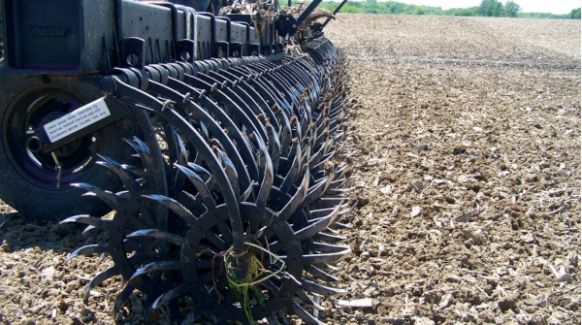

The Yetter 3400/3500 Standard Rotary Hoe has rescued many crops since its introduction. It is the insurance policy that saves emerging plants as the spoon-bill wheels break open soil crust.
The Standard Rotary Hoe is used to take out weeds without the use of herbicides, aerate wet residue before planting, and help p... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Short- and long-cast arms stagger wheels 7" to facilitate residue flow
- Wheels spaced on approximately 3 1/4" centers across width of machine
- Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
- Low horsepower requirements with operating speeds of 7-10 mph
- Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, min-till conversion, and rear parking stand for folding models; see options tab above for details)
- Widest models (see model details) feature double 7" x 7" toolbar design for added strength
- Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
- 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', 54', and 60' widths
- Breaks up crusted soil to improve emergence
- Mechanically rips out young weeds
- Aerates and fluffs soil around growing plants
- Incorporates herbicides and small seeds in one fast pass
Specifications
| 3500 Folding | |||||||
|
Model |
Toolbar Dimensions |
Gang |
Working |
Transport |
Row |
Quantity of |
Weight |
|
3525 |
Center: 7" x 7" x 1/4" x 174" Wings: 7" x 7" x 1/4" x 63" |
4 |
25'-0" |
14'-10" |
8R36 |
86 |
3,499 |
|
3528 |
Center: 7" x 7" x 1/4" x 167" Wings: 7" x 7" x 1/4" x 84" |
8 |
28'-0" |
14'-3" |
8R40, 16R20 |
96 |
3,640 |
|
3530 |
Center: 7" x 7" x 1/4" x 181" Wings: 7" x 7" x 1/4" x 91" |
8 |
30'-2" |
15'-5" |
12R30, 12R28, 16R22 |
104 |
3,904 |
|
3534 |
Center: 7" x 7" x 1/4" x 209" Wings: 7" x 7" x 1/4" x 98" |
8 |
33'-10" |
17'-9" |
10R40, 14R28, 18R22 |
116 |
4,799 |
|
3541 |
Center: 7" x 7" x 3/8" x 245" Wings: 7" x 7" x 1/4" x 123" |
9 |
40'-10" |
20'-9" |
12R40, 16R30, 24R20 |
140 |
5,269 |
|
3546 |
Center: 7" x 7" x 3/8" x 303" Wings: 7" x 7" x 1/4" x 123" |
9 |
45'-10" |
25'-9" |
14R36, 18R30, 24R22 |
158 |
5,732 |
|
3554 |
Center: 7" x 7" x 1/2" x 334" Wings: 7" x 7" x 3/8" x 156" |
12 |
54'-2" |
29'-0" |
16R40, 18R36, 32R20 |
186 |
8,707 |
|
3560 |
Center: 7" x 7" x 1/2" x 386" Wings: 7" x 7" x 3/8" x 170" |
13 |
60'-6" |
32'-5" |
20R36, 24R30,26R28 |
208 |
10,299 |
