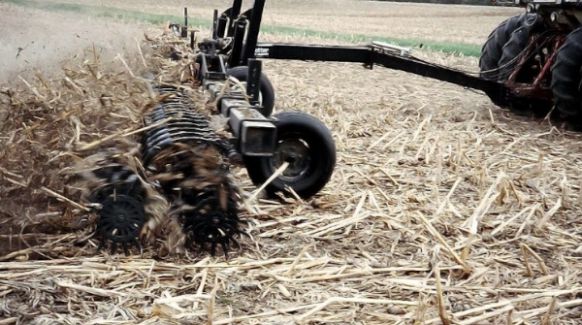

Yetter 3500 Folding Min-Till

Double tap to zoom



Features

  • Short- and long-cast arms stagger wheels 21" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Very fuel-efficient, with low horsepower requirements; can be operated at speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, and rear parking stand for folding models; see options tab above for details)
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

Specifications

  • Hitch: Mounted three-point category II/III
  • Hoe wheels: 21" diameter hoe wheels equipped with sealed gothic arch ball bearing
  • Riveted wheel assembly: 16 forged, self-sharpening, spoon-bill teeth
  • Down pressure: 18 lbs. with standard springs
  • Cylinders: 3000 psi with hoses on folding models
  • Safety features: SMV emblem, reflectors, light kit
  • Convenience features: Operator shield and parking stands





3500 Folding Min-Till

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3525

Center: 7" x 7" x 1/4" x  174"

Wings: 7" x 7" x 1/4" x 63"

4

25'-0"

14'-10"

8R36

86

4,056

3528

Center:  7" x 7" x 1/4" x 167"

Wings: 7" x 7" x 1/4" x 84"

8

28'-0"

14'-3"

8R40, 16R20

96

4,280

3530

Center: 7" x 7" x 1/4" x 181"

Wings: 7" x 7" x 1/4" x 91"

8

30'-2"

15'-5"

12R30, 12R28, 16R22

104

4,621

3534

Center: 7" x 7" x 1/4" x 209"

Wings: 7" x 7" x 1/4" x 98"

8

33'-10"

17'-9"

10R40, 14R28, 18R22

116

5,566

3541

Center: 7" x 7" x 3/8" x 245"

Wings: 7" x 7" x 1/4" x 123"

9

40'-10"

20'-9"

12R40, 16R30, 24R20

140

6,117

3546

Center: 7" x 7" x 3/8" x 303"

Wings: 7" x 7" x 1/4" x 123"

9

45'-10"

25'-9"

14R36, 18R30, 24R22

158

6,657
