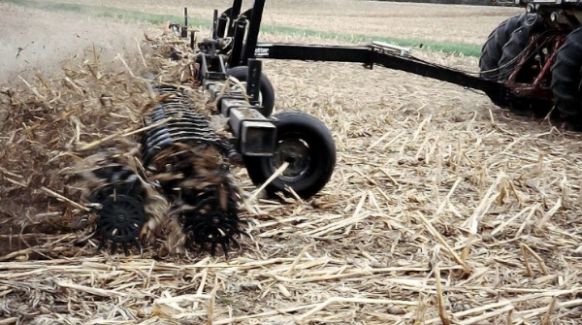

Yetter 3400 Rigid Min-Till

Double tap to zoom



Features

  • Short- and long-cast arms stagger wheels 21" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Very fuel-efficient, with low horsepower requirements; can be operated at speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, and rear parking stand for folding models; see options tab above for details)
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

Specifications

  • Hitch: Mounted three-point category II/III
  • Hoe wheels: 21" diameter hoe wheels equipped with sealed gothic arch ball bearing
  • Riveted wheel assembly: 16 forged, self-sharpening, spoon-bill teeth
  • Down pressure: 18 lbs. with standard springs
  • Cylinders: 3000 psi with hoses on folding models
  • Safety features: SMV emblem, reflectors, light kit
  • Convenience features: Operator shield and parking stands





3400 Rigid Min-Till

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3412

4" x 4" x 1/4" x 149"

3

12'-5"

12'-5"

4R30, 6R22

42

1,612

3415

4" x 4" x 1/4" x 184"

4

15'-4"

15'-4"

4R40, 6R30, 8R22

52

1,894

3421

5" x 7" x 1/4" x 255"

6

21'-2"

21'-2"

6R40, 8R30, 12R20

72

2,527

3428

5" x 7" x 1/4" x 338"

8

28'-2"

28'-2"

8R40, 16R20

96

3,247

3430

5" x 7" x 1/4" x 366"

8

30'-6"

30'-6"

10R36, 12R28, 12R30

104

3,641

3434

5" x 7" x 1/4" x 408"

8

34'-0"

34'-0"

10R40, 14R28, 18R22

116

4,424
