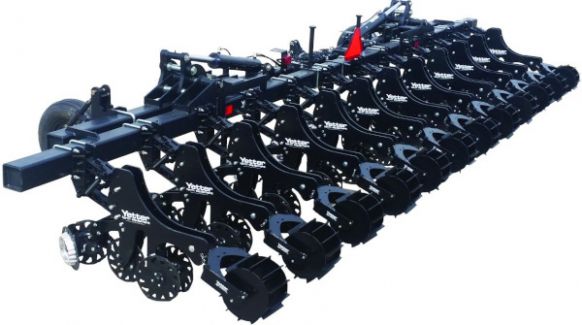

Yetter 3831-101 31' Double-Frame Toolbar
Double-Frame Hydraulic Locking Toolbar 3831-101 31' Double-Frame Toolbar
Overview:
The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
- Can be customized for odd or even row spacing depending on the application of the attachment
- Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
- Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
- Features 5" spacing between front and back bar
- Fits category 3 and category 3N hitches
- Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
- Optional rear hitch
- Includes parking stand
Specifications
Hydraulic cylinders: 5" x 24"
Options:
- Rear hitch for fertilizer cart
- 3-point hitch options
- Category 3
- Category 3 Narrow
- Category 4
