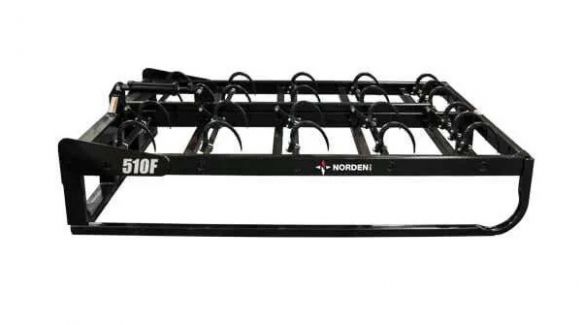

Norden Mfg 510F Grabber
10 BALE FLAT 510F Grabber
Overview:
• 10 bale grabber for moving bales arranged 2 long, 4 wide plus tie row, on edge.
• Bale groups can be picked up from the tie row end or the opposite end, enabling cross-stacking
• Matches bundles made with the AF10 bale accumulator.
• Heavy-duty grapple.
• Requires a loader with at least 1,700lb lift capacity and one set of remotes
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
STEEL TUBE FRAME
This quality steel frame ensures high strength and durability.
CAST STEEL BALE HOOKS
Once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.
ADJUSTABLE CROWD BAR
The Standard Grabber features an adjustable crowd bar that is mounted on the side of the grabber. When approaching a group of bales, the adjustable crowd bar works in combination with the back frame to crowd the bale group together.
Specifications
| Bale Configuration | 4 Bales Wide and 2 Bales Long, plus a tie row with 2 bales turned sideways |
| Bundle Dimensions | 72" to 76" Wide by 88" to 94" Long |
| Required Loader Capacity | 1,700 lbs. |
| Working Height | 1 ft. 1 in. |
| Working Length | 7 ft. 6 in. |
| Working Width | 6 ft. 0 in. |
| Approximate Weight | 740 lbs. |
