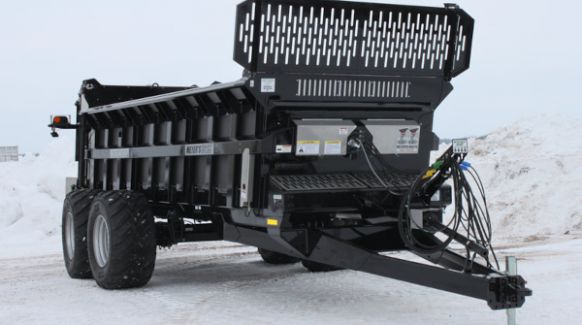

Meyer's MODEL MS570

Double tap to zoom



Features

All Solid Poly Box

Our box features a 1/2" thick High Density Solid Poly Floor and 3/4" thick Solid Poly sides for easy cleaning and minimal freeze up. Also, less friction means less force needed to pull the load off. The hydraulic end gate and front panel are also lined with poly.

Vertical Beaters

The Twin Twister Vertical Beater is both versatile and tough, and offers a superior spread pattern compared to horizontal beaters. It features Twin Ø39" Diameter Vertical Beaters w/ 20MM Thick Spiral Flighting. Abrasion-resistant knives come standard, but may be replaced by any number of cups for finer materials and semi-solids.
Spread patterns of 40-50 feet in width.
1000 RPM Input - 437 RPM Beaters

55 Series CAT 6 80° CV PTO Drive Shaft

 The constant velocity universal joint allows smooth machine operation through a wide range of motion. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints. The HP rating from this drive shaft gives you more than enough power to chew through those tough loads.

Ø1-3/4"-20 Spline (1000 RPM)

Automatic Over-Running Clutch

An automatic clutch built in to the rear PTO drive shaft offers a level of implement overload protection not possible with other types of clutches. The compact, efficient design disconnects the power source from the drivetrain when overload occurs, and does not reconnect until the speed is reduced to near-zero. During disengagement, the patented design does not allow or generate damaging torque spikes or heat. An audible clattering noise alerts the operator when it has disconnected. A built-in overrunning feature allows the beaters to coast to a stop when the PTO is disengaged.

Pintle Chain Apron

The 88C pintle apron chain is our standard apron on this unit.  The open barrel design helps eliminate material buildup in the root of the sprockets and feature smoother operation, uniform link wear and greater resistance to fatigue.  All heattreated parts and quad-staked pins. The 88C is a heavier version of the 667XH that comes standard on some of our other units.

The 88C Pintle Channel is 2” Wide x 1” Tall x 3/16” Thick

Heavy-Duty Hydraulic Apron Drive

An In-Line Parallel Shaft Gear Reducer with a 38.7:1 ratio drives a massive Ø2-3/4" shaft. Very high efficiency and torque. No worm gear also means less heat and more durability, along with better seal & lube life. Bevel and cylindrical forged gears made from the best material available today. Manufactured by BERMA, a world leader.

Hydraulic drive is standard with built-in overload relief protection. Provides variable unloading speeds to match load, ground speed, or application rate requirements.
Available control options include standard tractor-operated flow control, a manual flow control valve with "twist hose", or an electric flow control valve with a control box located in the tractor cab.

Stainless Steel Spread Pan

A stainless steel spread pan comes standard and ensures good distribution of material that may otherwise make it passed the beaters. SAE 304 Stainless Steel construction ensures it won't rust or corrode with highly acidic manure such as poultry litter.

Optional Scale Kit

Keep track of how much you are spreading with an optional scale kit system by Digi-Star. The 5 point load cell system offers accurate weight readings to a variety of indicators.

Indicator Options
EZ400
EZ2810
NT560 Manure Record Keeping

Rock Guard

This unit comes standard with a rock guard to prevent large rocks and debris from hitting the tractor cab.

Specifications

CAPACITY Struck- 570 ft3*
Heaped- 865 ft3*
Old Rating- 900 Bushel
FLARE WIDTH N/A
INSIDE BOX WIDTH 80-1/2"
INSIDE BOX LENGTH 243"
BOX DEPTH 47-1/2"
LOADING HEIGHT 95"
OVERALL WIDTH 155"
OVERALL LENGTH 410"
OVERALL HEIGHT 130"
EMPTY WEIGHT 20,500 lbs
APRON CHAIN 88W Pintle
​SPINDLES ​(4x) Ø4.00"
​WHEEL HUBS (4x) 18000# Hubs
​TIRE SIZE Std- 600/55x26.5​
(Flotation Tires)
BEATERS Twin Ø39" Vertical Beaters w/ 20MM Thick Spiral Flighting
​PTO SPEED 1000 RPM
APRON SPEED Variable​
0 ft/min - 15 ft/min
​REQ. TRACTOR HP 250 HP & Up
