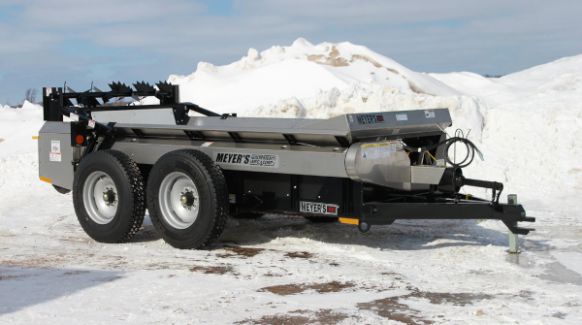

Meyer's MODEL 300

Double tap to zoom



Features

All Solid Poly Box

Our box features a 1/2" thick High Density Solid Poly Floor and 3/4" thick Solid Poly sides for easy cleaning and minimal freeze up. Also, less friction means less force needed to pull the load off.  The box flares are made of SAE 304 Stainless Steel. Built to last!

Front Chain Drive

Easily accessible front drive chain utilizes a spring-loaded chain tensioner to reduce premature wear. A greaseable shear sprocket assembly protects other components should the beaters be overloaded. Sprockets configurable for a 540 RPM or 1000 RPM PTO Drive.

Heavy-Duty Gearboxes

Main beater is directly driven by a 90° bevel gearbox with a 1:1 Ratio.  The apron drive features an In-Line Parallel Shaft Gear Reducer with a 31.4:1 ratio. Very high efficiency and torque. No worm gear also means less heat and more durability, along with better seal & lube life. Both feature bevel and cylindrical forged gears made from the best material available today by the same manufacturer with a worldwide reputation.

Optional Hydraulic Apron

Optional hydraulic apron drive allows the operator to match the spreading rate and pattern with the manure consistency by varying the speed of the apron. Speed can be adjusted by a manual flow control valve at the front of the spreader.

Optional Top Beater

An optional top beater provides more uniform spreading. It also breaks up large chunks of manure that otherwise may be carried over the main beater.

Wear-Resistant Paddles

The main beater is equipped with replaceable 1/4" thick AR400 steel paddles. AR400 is an abrasion resistant (AR) quenched and tempered alloy steel that exhibits high abrasion resistance and hardness with a durable, impact-resistant surface.

Heavy-Duty Apron Chain

The 67P11 Positive Lock Chain is made of the highest quality construction for heavy duty work in farming and other industrial projects. The links of the chain are made of a one piece construction with no pins to bend, lock or shear.

Optional Rock Guard

An optional rock guard can be added to this unit to keep you and your tractor safer from large rocks and debris that could hit the tractor cab.

Specifications

CAPACITY Struck- 140 ft3*
Heaped- 244 ft3*
Old Rating- 300 Bushel
FLARE WIDTH 74"
INSIDE BOX WIDTH 60"
INSIDE BOX LENGTH 14' 0"
BOX DEPTH 27"
LOADING HEIGHT 51-3/4"
OVERALL WIDTH Single & Tandem
(At Lights) 105-3/4"
OVERALL LENGTH 20' 5"
OVERALL HEIGHT 59 -1/2"
EMPTY WEIGHT Single- 4,280 lbs​
Tandem- 5,120 lbs
APRON CHAIN Single #67P11
​SPINDLES Ø2-3/4"
​WHEEL HUBS Single- (2x) 6000# Hubs
Tandem- (4x) 6000# Hubs
​TIRE SIZE Std- 11R22.5 (Recap)
Opt- 16.5Lx16.1 10-Ply
BEATER DIAMETER Ø29"
​PTO SPEED 540 RPM or 1000 RPM
STD. APRON SPEED Std- 6 ft/min​
Opt- 8 ft/min
​HYD. APRON SPEED Variable​
0 ft/min - 8 ft/min
​REQ. TRACTOR HP 60 HP & up
​TOP BEATER Optional
