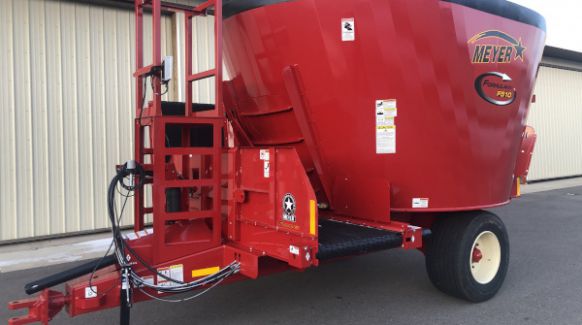

Meyer Farm F510 PRO
Single Screw F510 PRO
Overview:
The Meyer Formula F510 PRO Single Screw Mixer has a capacity of 510 - 570 cu ft. This is a premium, single auger machine that offers tons of options while providing best-in-class mix quality. Standard features include: 1000 RPM drive, heavy duty VM10 planetary drive, wide-large diameter tires for rough terrain use an... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- The Formula to a good ration starts with the basics. Precisely engineered tank walls and screw provide accuracy and consistancy that you expect!
- A Precisely Engineered Auger - propels your ration up the center of the auger and then down along the outside walls for fast processing while maximizing end-to-end movement.
- Lead Edge Scraper is adjustable and replaceable, it is responsible for initiating efficient feed movement in the Formula Mixer (Heat treated - high carbon steel).
- Auger Discharge Kicker Arm (right side of graphic) provides an extra sweep with every revolution, allowing smoother feedout in less time!
- Unique 3 piece knife design saves you time and money! This system offers added strength, simple adjustability and reduced replacement costs. (tungsten carbinate coated knives)
- Perfect Match
Meyer offers a standard 2 blade knife for typical rations or an aggressive 3 section knife for rations with high volumes of long stem material. - Simple - Strong Driveline
Meyer Formula F510 PRO Single Auger Mixer provide a simple in-line power transfer from your 1000 RPM PTO to the Stronger VM10 Planetary Drive. It generates 40 RPM max speed to PROCESS FAST and UNLOAD EVEN FASTER! - 1000 RPM Drive
These Single Screw units feature an 1 3/8" 1000 RPM drive for reduced startup torque. Single speed drive eliminates extra moving parts! - HD Integrated Chassis
The F510 PRO Formula features a durable, integrated undercarriage that accomodates large diameter tires. This arrangement is desirable in rough terrain and soft conditions. Adjustable clevis hitch is standard. Hitch length is dependent on front conveyor or side door models. - Rugged On & Off Road Design
This simple 2-Wheeled Axle System is standard. It features 2 large tires on one plane to reduce tire scrub/wear. The F510 PRO glides over the toughest conditions thanks it these big 435/50Rx19.5s! - Poly Lined Door Tracks
All Door Tracks are poly lined for reduced wear and stress. They also eliminate freeze up issues and provide easy long term replacement! - Hay Stops
Hay Stops are double acting and easily adjust for tuning when processing long stemmed material. Most other hay stops only adjust 1 direction (top or bottom - Meyer does both). 2 Stops are standard equipment. - Belt Capacity Extension
8" Belt Capacity Extension packages are available for all Formula Mixers. They generally add about 10% to the mixer capacity (Optional). - Hay Retention Ring
Meyer offers a optional hay retention package. This package is useful when high volumes of long stem material are in your batch. It keeps hay from boiling over the tank and maintains good contact between the bale and auger knives. - Meyer offers a wide variety of scalehead options from Digi-Star and Avery Weightronics. Weigh bars and junction box come standard with all Formula mixers.
- Conveyor Gets Weighed!
All Formula models weigh product in the mixer tub and on the conveyor - unlike many brands that fail to weigh product that has exited the tank. - Door Options
Formula Single Auger Mixers offer a wide array of door options. Choose from Front Door, Rear Door, RH Side Door or LH Side Door to match your particular needs. Check out the size of these openings - big door opening combined with faster auger speed provide faster discharge and cleanout! - Front Door Conveyor Option #1: Flat Front Belt Conveyor
This Flat Front Belt Conveyor provides smooth, quiet transfer of feed to the right or the left. Includes a hydraulic shuttle feature that slides the conveyor right or left of center by 8"! (Chain Available) - Front Door Conveyor Option #2: Belt Incline Conveyor
This versatile Front Belt Incline System allows you to unload out the incline side or flat side. Silky smooth delivery in 24, 36, 48 lengths. Mechanical stop stardard, Electric splitter valve available to reduce hyd outlet requirements from 3 to 2. (Chain incline available) - Side Door Option #1: 12
Simple 12" Belt Slide Chute works well to deflect feed beyond the mixer tire and it's simple - no moving parts! - Side Door Option #2: Hydraulic Folding Slide Tray
This Hydraulic Folding Slide Tray with magnets operates at a steep angle for complete discharge! (twin screw mixer in photo) - Side Door Option #3 - Belt Discharge Conveyor
This Side Door Belt Discharge Conveyor works great to reach into various bunk arrangements or just to move feeder further from the mixer (24" - 72"). This belt system eliminates feedback plus your cows won't even hear it running! (Chain available) - Front Viewing Platform (front door only)
Front Viewing Platform is available in lieu of the standard tank ladder (avaialble on front discharge models only). This feature allows convenient access from the right or left side. - Tank Magnet System
This "Super Strength Tank Magnet" hinges open from the outside of the mixer for easy upkeep and cleaning. It's an investment that will pay you back many times over. Other magnet options include - Kicker Arm Magnet, Door Frame Magnet (side door models), Slide Tray Magnet (side door models), Belt Drape Magnet (front door models) and Deflector/Tip-Off Magnets (Front Door incline conveyor models). - Kicker Arm Magnet
This exciting new magnet outperforms most all other choices and it's priced right. This Rare Earth, round magnet mounts behind our standard kicker arm and collects tramp metal as it circulates through the ration. It provides the perfect hiding spot for iron until you clean it off! If you want a magnet that works at a reasonable price, BUY THIS ONE!
Specifications

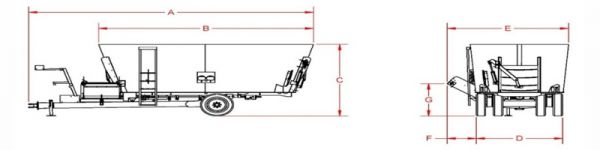

| MODEL - DIMENSIONS (INCHES) | F510 PRO |
| A - Overall Length-Side Door / Front Door | 195"/231" |
| B - Mixing Chamber Length | 162" |
| C - Overall Height (Standard Tires) | |
| -Standard Tire Size (Quantity) | 435/50R19.5 1 (2) |
| -Optional Tire Size (Quantity) | N/A |
| -Optional Tire Size (Quantity) | N/A |
| - Base Machine | 111" |
| - Belt Extensions | 117" |
| - Hay Retention Ring | 116" |
| D - Tread Width | 101" |
| E - Transport Width-Frt Conv./Side Conv. w/36" ext | 123"/132" |
| F - Max Discharge Reach | |
| - Frt Cross Conveyor-Flat | 10" |
| - Frt Cross Conveyor-Belt Incli.-24"/36"/48" | 29"/37"/49" |
| - Frt Cross Conveyor-Chain Incli.-24"/36"/48" | |
| - Side Conveyor-24"/36"/48"/60"/72" | 40"/47"/58"/69"/80" |
| - Side Slide Tray | 21" |
| - Side Belt Extension | 18" |
| G - Max Discharge Height | |
| - Frt Conveyor-Flat Belt | 29" |
| - Frt Conveyor-Belt Incli. 24"/36"/48" @45˚ | 47"/53"/56" |
| - Frt Conveyor-Chain Incli.24"/36"/48" @ 45˚ | |
| - Side Conveyor-24"/36"/48"/60"/72" @45˚ | 49"/55"/63"/72"/80" |
| - Side Slide Tray | 21" |
| - Side Belt Extension | 30" |
| SPECIFICATIONS | |
| Mixer Capacity | |
| - Cubic Feet-No Extension/With Extenion | 510/570 |
| - Maximum Net Load - Pounds | 16,600 |
| Augers | |
| - Number | 1 |
| - Diameter | 107" |
| - RPM-Standard | 40 |
| - Upper Flighting Thickness | 5/8" |
| - Lower Flighting Thickness | 3/4" |
| - Knives-Adjustable - (Std./Max Avail.) | 6/8 |
| Drive | |
| - Planetary | In-Line Drive |
| - PTO Drive (Std./Opt.) | 1000 RPM |
| - Protection | Shear-Bolt |
| Discharge | |
| Door Opening - Front | 42" x 40" |
| - Side | 35"x40" |
| - Rear | 42"x40" |
| Conveyor Width - Front/Side | 36"/36" |
| Flat Front Cross Conveyor Travel-Left or Right | 8" |
| Tub and Trailer Construction | |
| - Floor Thickness | 5/8" |
| - Sidewall Thickness | 1/4" |
| - Trailer or Subframe | In-Line x 2 |
| -Optional Axle | N/A |
| - Spindle Diameter (Quantity) | 2-7/8" (x2) |
| - Scale System | 3-point |
| -Tongue Weight - % Gross | 10% |
| -Tractor Requirement - PTO HP | 100 |
