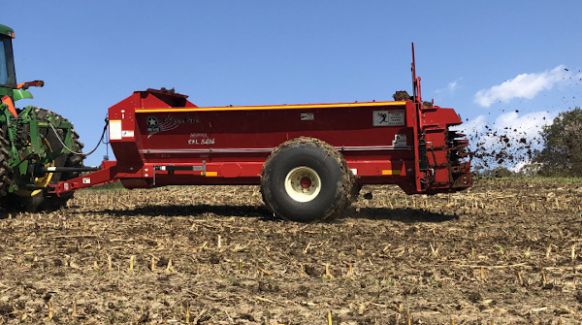

Meyer Farm SXL3954
SXR/SXL Crossfire Series SXL3954
Overview:
2,617 gallons - New Hinged Cleanout Doors
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Pull Type Models in 4 sizes / Truck Mount Version available soon!
- Meyer patented straight-line flow - provides the ultimate spread performance. Better pattern, faster unload time, less horsepower & minimal wind drift!
- Rear Unload Rules! When it comes to spreading, keep the mess behind you. Provides superior application too.
- 3 auger system, only one of its kind! Lower 20" augers feed the door while the upper 13" auger levels the load forward and eliminates bridging.
- Thanks to the dual lower auger arrangement, the Meyer spreader body is wide down low. This means we can maintain a lower load height with maximum capacity! The other advantage is the near elimination of bridging which is common in side delivery spreaders.
- independent Lower Auger Shear Bolt Protection, a Meyer exclussive. Allows you to protect an obstructed auger while still unloading a majority of the load with the other auger. Bound to save you work!
- Heavy Duty Drivetrain - Crossfire models feature #120 final drive chains #80 expeller and first reduction. HD jackshafts / spring chain tensioning / remote greasing on hard to reach spots! The auto roller chain oiler is standard for added convenience and extended chain life.
- Automatic Roller Chain Oiler is standard. Oils all roller chains each time you cycle the tailgate. Eliminates reduced access and manure contamination associated with oil bath systems.
- Sectionally Flighted 20" Lower Augers propel material to the rear of the spreader. Full auger flighting / No Paddles to wrap, freeze or wedge material
- Our Revolutionary T-Post auger hold-down retains a nylatron (non maintenance) bushing and maintains tight auger tollerance to the tank floor. Provides you more complete cleanout!
- Vertical Twin Expellers pulverize material for smooth, even application. This machine bands material across the back like a ferilizer spreader would, unlike side delivery units that attempt to chuck all the product out one side. Paddles are replacable and reversible!
- Check out this Shock Load Coupler System....Drastically reduces "shock/stress" related to rocks and frozen material to your drivetrain. This dampening system combined with a torque disconnect clutch protect your expeller drive sytem.
- Direct shaft drive expellers (includes our shock load coupler). No chains on the rear of this spreader. V-Force models feature an overrunning clutch system to reduce backlash on the drivetrain.
- 540 CV PTO is standard - 1000 CV PTO is optional. Both incorporate a torque disconnect clutch to protect your investment.
- All Meyer spreaders feature a full channel frame. Stress from the hitch, axles and body are transmitted throught the frame network. Take a look at the unibody design on most V-Spreaders.
- Standard Hitch / Optional Hitch
The 7400 Model features a standard V-Hitch / the 7500 Model comes standard the long hitch package. (7500 pictured here with long hitch) - HD Axle System
This HD, offset A-Frame tandem on the V-Force models features 3" spindles on a 7500 (2 3/4" spindles on 7400) - both are 8 bolt. 10 bolt hub/spindle option available on 7500 model. - Many tire options available including rib implement tires and used truck tires.
- Angle splash shields standard front and rear on 7500; Elevated front splash shield and flat rear splash shield on 7400 model.
- LED turn signal lighting standard / Center Lift Door
The center lift door system eliminates arms and linkages - it is standard on the 7500 model - Hydraulic Lid Option
This Hydraulic Lid feature provides cleaner transportation and less odor pollution. Right or Left hinge available and a port hole is standard equipment. (7500 only) - Extension Package
This 4" side extension is available for the 7400. It increase it's capacity to 465 bushel or 2,150 gallons. - Scale Package
The 7500 Model is available with a 5 point scale package. Basic or Nutrient Tracker versions available.
Specifications
| MODEL | SXL3954T | SXL3954 Truck Mount |
| CAPACITY | ||
| Bushels (heaped) - No Ext. | 390 | 390 |
| Bushels (heaped) - With Ext. | 540 (9" ext.) | 540 (9" ext.) |
| Gallons/Cubic Feet (struck) - No Ext. | 2033/272 | 2033/272 |
| Gallons/Cubic Feet (struck) - With Ext. | 2617/350 (9" ext.) | 2617/350 (9" ext.) |
| DIMENSIONS | ||
| Overall Length | 26' | N/A |
| Inside Tank Length | 18' | 18' |
| Loading Height | 61-3/4" W/16.5L x 16.1 | 47-1/2" + Truck |
| Loading Height With Ext. | 70-3/4" W/16.5L x 16.1 | 56-1/2" + Truck |
| Overall Height-Top of Splashguard | 72-1/4" W/16.5L x 16.1 | 58' + Truck |
| * Height W/Optional tire | +1" W/19L x 16.1 | N/A |
| Overall Width - Outside Tires | 104" W/16.5L x 16.1 107-3/4" W/19L x 16.1 |
N/A |
| Width - Top of Tank | 74" | 74" |
| SPECIFICATIONS | ||
| Total Weight Estimated (lbs) | 9,720# | N/A |
| Maximum Load Net (lbs) | 24,000# | N/A |
| Lower Auger Diameter | 20" | 20" |
| Lower Auger Flighting Thickness | 3/8" Sectional | 3/8" Sectional |
| Independent Lower Auger Shear Hub Sprockets |
Standard | Standard |
| 3rd Auger (solid material) | Standard | Standard |
| Drive - PTO-RPM | 540 RPM - 1 3/8" Constant Velocity |
PTO Direct - Standard Hydraulic - Optional |
| Drive Line Protection | Overrunning Torque Disconnect Clutch w/Shear Bolt Auger Protection | Overrunning Torque Disconnect Clutch (PTO Version) w/Shear Bolt Auger Protection |
| Roller Chain Drive - Auger | #80 - #120 | #80 - #120 |
| Roller Chain Drive - Expeller | #80 | #80 |
| Roller Chain Auto Oiler | Standard | Standard |
| Expeller Speed (RPM) | 660 | 660 |
| Expeller Diameter | 23" | 23" |
| TANK CONSTRUCTION | ||
| Thickness - Auger Troughs | 3/16" | 3/16" |
| Thickness - Tank Sides | 3/16" | 3/16" |
| Frame Construction | HD Formed Channel | HD Formed Channel |
| Door Opening | 30" x 46" | 30" x 46" |
| Spindle Size | 3" Sleeved | N/A |
| Hub | 8 Bolt | N/A |
| Splash Shields - Standard | Flat (Low Clearance) | Flat (Low Clearance) |
| Transport Light w/Ag Plug | Standard LED | Standard LED |
| Tractor Requirements-PTO HP (Min.) | 110 | |
| OPTIONS | ||
| 1000 RPM 1 3/8" - 21 spline | Optional | N/A |
| Tandem Axke | Standard | N/A |
| HD Axle Package | Optional | N/A |
| 7-1/2" Extended Hitch (for dual wheeled tractors) | Optional | N/A |
| Hydraulic Lid | Optional | Optional |
| Poultry Litter Package | Optional | Optional |
| Scale Package | Optional | N/A |
| Safety Chain / SMV Sign | Optional | N/A |
| Truck Mount Version | Optional | PTO Direct - Standard Hydraulic - Optional |
