Meyer Farm 9624

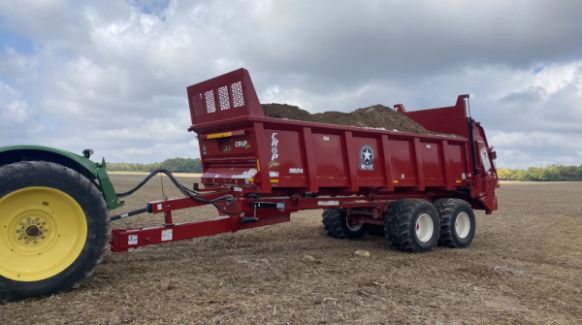

Crop Pro Precision Spreader 9624
Overview:
Litter, lime, compost or manure products are no match for the FPX1 combination attachment. Standard features include: HD steel construction, solid poly floor, variable speed triple apron system, guillotine gate, suspended axles and big floatation!
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 9624 & 9630 Pull Type Crop Pro - The 9600 Crop Pro capacities range from 925 - 1,180 cu ft heaped.
- Quality Performance - Maximize the value of your manure, litter, lime or compost with a Meyer Crop Pro!
- Heavy Gauge Steel Body - The Crop Pro features a robust body & frame design, when mated with our tubular chassis and suspended axle system, you can be assured of years of service!
- Triple Apron Design - This Triple Apron System features short slats that are much less likely to bow or bend compared to others long versions. In addition, with 6 strands of chain, there is an impressive 180,000# of combined tensile strength to pull the load! An added benefit is reduced slat surge in your spread pattern.
- Hydraulic Geardrive - Hydraulic Geardrive Technology powers the main apron drive shaft, not roller chain reduction like most spreaders. Accurate application rates and simple maintence are the benefits.
- Solid Poly Floor - This solid, virgin poly floor reduces drag and increases unloading speed all while making life easier on your spreader drive system. This floor is also supported by a intense, steel support system to handle heavy loads!
- Cab-Control Apron Drive - Variable Speed - The 9600 Crop Pro comes standard with this handy cab-control box for simple operation of the variable speed apron and reversing feature.
- FPX1 Combination Attachment - This FPX1 Spreading Attachment combined with a guillotine tailgate meter material to the ground with amazing accuracy. Low rates - no problem!
- Guillotine Door System - A massive, reinforced guillotine door helps control material flow and avalanching assuring low rate accuracy.
- Tailgate Indicator Feature - This mechanical tailgate indicator allows quick, convenient awareness of tailgate position.
- Hydraulic-Lifting Service Gate - This hydraulic-lift service door is standard on the FPX1 Attachement. It offers quick access to cross beaters for service & cleaning.
- Trip Door - This spring-loaded trip door at the lower portion of the spreading enclosure protects the FPX1 Discharge Attachment by allowing some forgiveness for foreign objects and certain frozen material.
- Axle Slider System - The 9624 Model features an HSTS30 tandem trailer with a slider axle system. The tandems can be quickly reloaded front to rear to optimize drawbar weight and traction!
- 9630 Triple Axle Model - The 9630 Model features a SSTS48 Tridem (3 axle) trailer with HD spring suspension and front & rear steer axles.
- Big Floatation! - Choose from 2 radial tire options for big-time floatation qualities! 710/50x26.5 or 800/45x26.5
- 36" High Capacity Extension Set - This high capacity side extension package is commonly utilized for bulkier products like silage and poultry litter. It is heavy duty and quickly bolts on. It can be utilized with the guillotine door or can accomodate the addition of a top pivot silage door.
- Variable Rate Scale Technology - Meyer Crop Pro offers a simple scale package or this complete Top Con Athene Varialble Rate Package. It is an ISOBUS based system which provides precision application of your product, mapping too!
Specifications
| MODEL: | 9624 Pull Type |
| Box Inside Length | 24' |
| Overall Length | 36' 5" w/HSTS30 |
| Inside Width | 90 3/4" |
| Overall Width Box/Box w/Std Tires | 111"/125.5" |
| Inside Height | 47.5" |
| Overall Height | 155.2 w/HSTS30 |
| w/FPX1 | w/710/50R26.5 |
| Loading Height | 119" w/Trailer |
| Capacity-Struck/Heaped | 720/925 Cu. Ft |
| Weight (Approx.) w/FPX1 & Std Tires | 28,120# |
| Horse Power Required-Min. | 220 HP |
| Apron Chains | D667XH/3-Aprons |
| Slats Per Apron | 41/123 Per Box |
| Apron Drive | Hydraulic - Variable |
| Reversing Apron | Standard |
| Floor | Super Slide - Solid Poly |
| Box Sides | Steel - 10 gauge |
| Front 36" Folding Guard/Deflector | Standard |
| Transport Lights w/Cord | Standard |
| OPTIONS | |
| Rear Attach FPX1 | Optional |
| Silage Extension Package | Optional 36" |
| Scale Packages | Optional |
| Poly Apron Return Liner | Optional |
| TRAILERS (pull type) | *For 9624* HSTS30 |
| Frame | 4x8 tubing |
| Capacity (Trailer/Spreader/Load) | 48,000# |
| Axle Configuration | Tandem Non Steer 25,000# x 2 Sliding HydraulicSuspension |
| Heavy Duty Hubs | Grease Filled - 10 Bolt |
| Articulating Implement Hitch | "Std - Requires 1.5" or 2"" pin Hammerstrap Style Hitch" |
| Poly Fender Liner | Standard |
| Steel Fender Flares | Optional |
| Tire Options: | w/710/50xR26.5 High Floatation 800/45Rx26.5 High Floatation |
| Brakes (Hyd Hand or Foot Pedal) | Optional |
| Safety Chain/SMV | Optional |
