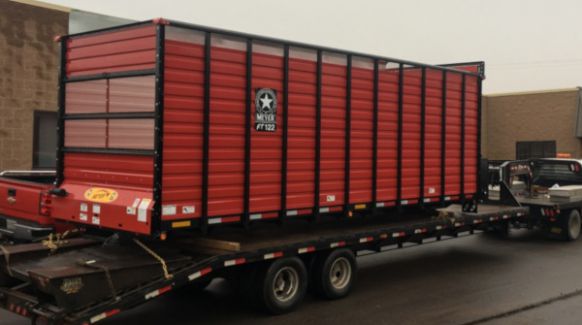

Meyer Farm RT122
RT100 Series Wagon / Cart / Truck Mount RT122
Overview:
The Meyer RT100 Series Rear Unload forage box is available from 16-22' in length for Wagon, Cart or Truck Mount applications. It comes standard with a roof assemble but is available in an open top version. It features hydraulic geardrive, all-steel frame and a 7'5" insterior width. Fast, safe, efficient rear unlo... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Wagon, Trailer or Truck Mount versions available
- FAST – STABLE – SAFE unloading of your materials (no hoist)
- 16 – 18 – 20 - 22’ models / interior width 7’5” for max capacity per running foot!
- HD fully welded frame @ 24” centers. 100% steel floor support system with tubular side uprights!
- Hyd Gear-drive System offers efficient, fast unloading with no roller chains / big 2” driveshaft
- Removable roof system is standard but available as open top (also available with extended "crop saver" roof)
- High capacity, 12” taller side package available with or without roof
- Multiple front gate options to match your loading application
- Corrugated steel side panels standard with oven baked red finish provide strength and rich look
- Marine treated plywood floor standard / optional solid poly floor pictured here
- Heavy duty 667X pintle chains standard equipment / notice 4 latches lock directly into aprons for positive latching every time!
- Top Pivot rear door standard with gate delay (great time-saving feature!)
- High Gloss urethane paint finish on frame
- Scale packages available for wagon, trailer or truck mount applications
Specifications
| MODEL | RT122 |
| Floor Length | 22' 6" |
| Overall Length - std roof | 23' 6" |
| Main Apron | 667 X |
| Overall Width | 101" |
| Inside Width | 89.5" |
| Power Source | Hydraulic Gear Drive |
| Drive Shaft Diameter | 2" |
| Removable Roof System | Standard |
| Overall Height | |
| Standard Sides / roof | 114.5" |
| - 12" taller sides / roof | 126.5" |
| - Std. sides / no roof | 95" |
| - 12" taller sides / no roof | 107" |
| Inside Height | |
| Standard sides / roof | 94.5" |
| - 12" taller sides / roof | 106.5" |
| - Std. sides / no roof | 75" |
| - 12" taller sides / no roof | 87" |
| Optional Equipment Available For All Models |
| 12" Taller Sides |
| Rear Gate Delay |
| Open Top / No Roof |
| RH Roof Hood |
| Crop Saver Roof Pkg |
| Solid Poly Floor |
| Truck Mount |
