Meyer Farm 9130RT Trailer
9100 RT BOSS Semi "Ag" Trailer 9130RT Trailer
Overview:

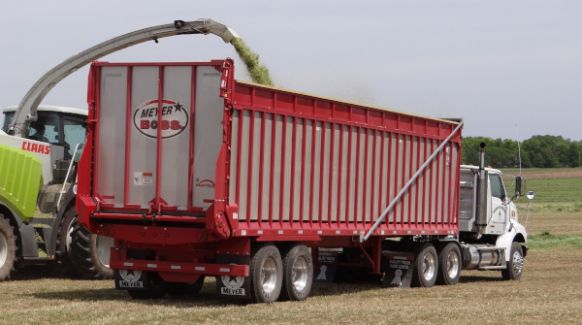

The BOSS RT provides fast, simple and safe transport and unloading of your forage. Exclussive hydraulic dual geardrive technology and a heavy duty steel frame provide years of service with minimal maintenance! Options include: barn door gate, grain kit, lighting options, axle and tire configurations, tarps - plus ... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- FAST – STABLE – SAFE unloading of your materials (no hoist) - Approximately 1 minute at 40 gpm!
- 30, 36 or 40’ models available / interior width 98” for max capacity per running foot!
- HD fully welded frame @ 16” centers to handle heavy loads while maintaining a low center of gravity!
- Dual Hyd Geardrive System offers efficient, fast unloading with no roller chains / big 2 3/8” driveshaft
- 1” hydraulic plumbing with JIC front connections
- Stainless Steel side panels provide practicality, corrosion resistance and good looks.
- Solid poly floor – high molecular virgin (not reground!)
- Top Pivot rear door standard with gate delay - Barn Doors with air closure optional
- LED Signal/marker/clearance lights, DOT tape and rear bumper standard (pictured w/ optional 18 light pkg)
- Integrated dual front viewing window / elevated “BOSS” plate up front for easy hookup / storage
- Farm name on box sides standard
- High Gloss urethane paint finish / red standard - black optional
- Electric front to rear or side to side tarp packages available
- Effective Grain Kit attachment option / quick – easy – multi-purpose!
- Reversing apron package available for bale hauling.
- Set back axles / air lift axles and tire options available
- It Feels Right!
Meyer takes pride in producing a quality product because we know you take pride in your investment!
Specifications
| DIMENSIONS | 9130RT Trailer |
| Inside Length | 30' |
| Inside Width | 98" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 31'1" |
| Overall Width | 102" |
| Overall Height - no extension (top of gate) * | 147" |
| Overall Height w/14" extension (top of gate) * | 159" |
| Overall Side Height - no ext. / ext. * | 130.5/144.5" |
| Stringer Width (Truck/Trailer Mount) | NA |
| Capacity (struck level) Cu. Ft. - w/o ext. | 1460 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 1720 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 30 ton |
| Apron Chains (pintle) | 667XH |
| Rear Drive Shaft | 2-3/8" HD SOLID SHAFT |
| Power Source / DIRECT GEARDRIVE | hyd-dual |
| Upright Spacing | 16" on ctr |
| Upright / Cross member Construction | 2x2 tubing |
| Enclosed Side Frame/Cross Member Union | STD |
| Unloading Time (Dependent of Hyd. System) | 55 sec |
| FEATURES | 9130T |
| Clad-Tuff Fiberglass Woven Side Panels | NA |
| Stainless Steel Side Panels | STD |
| Solid Poly Floor - High Molecular | STD |
| Rear Gate Delay System *new RT design!! | STD |
| Automatic Rear Door Unlatch / Latch | STD |
| Hydraulic Drive | STD |
| Double Viewing Window in front gate | STD |
| Rear Transport Lights - LED (new location) | STD |
| Marker/Clearance Lights (LED) & D.O.T. Tape | STD |
| Personalized Farm Name on Sides | STD |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | OPT |
| +includes fold-down front ext. except w/tarp | |
| Double Center Opening Doors Hyd/Air (Barn Doors) | OPT |
| Grain Kit / Quick Attach for Top Pivot Door | OPT |
| Grain Kit / Quick Attach for Barn Door Gate | OPT |
| Side-mtd, LED Turn Signals in addition to std | OPT |
| Reversing Apron Feature | OPT |
| Set Back Axle Design / Air Lift Pusher Axles | OPT |
| Side Hood Deflector/backstop (RH side) | OPT |
| Black paint in lieu of Red | OPT |
| Truck Mount Kit w/Steel Fenders | STD |
| Factory Install of Truck Mount Kit | STD |
| Wagon/Trailer Mount Kit | NA |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | OPT |
| Side-to-Side Roll Tarp (electric) | OPT |
