Meyer Farm 8118RT

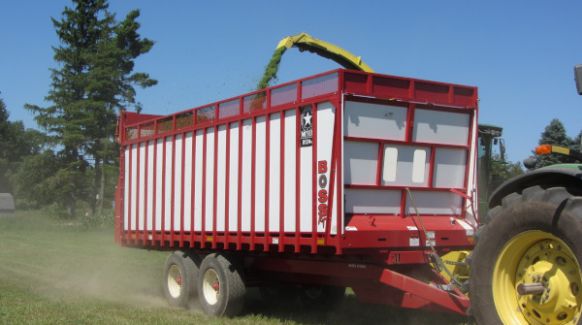

8100 RT BOSS Truck / Chassis-Cart Mount / Wagon Mount 8118RT
Overview:
The Meyer 8100 RT BOSS Rear Unload box features a massive steel frame, hydraulic direct geardrive, poly floor and clad tuff woven fiberglass sides. This units provides fast, safe and efficient transport of your product for Truck, Cart or Wagon Mount applications. All BOSS models are 8' wide inside for maximum capac... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- FAST – STABLE – SAFE unloading of your materials (no hoist)
- 18-20-22-24-26’ models / interior width 97” for max capacity per running foot!
- HD fully welded frame @ 16” centers to handle heavy loads while maintaining a low center of gravity!
- Hyd Gear-drive System offers efficient, fast unloading with no roller chains / big 2 3/8” driveshaft (8126RT features dual gear drive like 9100RT)
- Clad-Tuff fiberglass woven side panels provide practicality, corrosion resistance and good looks.
- Solid poly floor – high molecular virgin (not reground!)
- Top Pivot rear door standard with gate delay - Barn Doors with hyd or air closure optional
- LED lighting - (signal light standard / marker & clearance lights w/DOT tape optional)
- Integrated dual front viewing window
- Farm name on box sides standard
- High Gloss urethane paint finish (Red standard / Black optional)
- Electric front to rear or side to side tarp packages available
- Effective Grain Kit attachment option / quick – easy – multi-purpose!
- Reversing apron package available for bale hauling
Specifications
| DIMENSIONS | 8118RT |
| Inside Length | 18' |
| Inside Width | 97" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 19'1" |
| Overall Width | 102" |
| Overall Height - no extension (top of gate)* | 103.5" |
| Overall Height w/14" extension (top of gate)* | 115.5" |
| Overall Side Height - no ext. / with ext.* | 88.25/102" |
| Stringer Width (Truck/Trailer Mount) | 33.5" |
| Capacity (struck level) Cu. Ft. - w/o ext. | 880 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 945 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 25 ton |
| Apron Chains (Pintle) | 667XH |
| Rear Drive Shaft | 2-3/8" HD SOLID SHAFT |
| Power Source / DIRECT GEARDRIVE | Hyd. |
| Upright Spacing | 16" on Cntr |
| Upright / Cross member Construction | 2x2 Tubing |
| Unloading Time (Dependent of Hyd. System) | 40 sec. |
| FEATURES | |
| Clad-Tuff Fiberglass Woven Side Panels | Standard |
| Stainless Steel Sides Panels | Optional |
| Solid Poly Floor - High Molecular | Standard |
| Rear Gate Delay System *new RT design!! | Optional |
| Automatic Rear Door Unlatch / Latch | Standard |
| Hydraulic Drive | Standard |
| Double Viewing Window in front gate | Standard |
| Rear Transport Lights - LED (new location) | Standard |
| Marker/Clearance Lights (LED) & D.O.T. Tape | Optional |
| Personalized Farm Name on Sides | Standard |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | Optional |
| +Fold-down Front Extension optional | |
| Double Center Opening Doors Hyd./Air (Barn Doors) | Optional |
| Grain Kit / Quick Attach for Top Pivot Door | Optional |
| Grain Kit / Quick Attach for Barn Door Gate | Optional |
| Side-mtd, LED Turn Signals in addition to std | Optional |
| Reversing Apron Feature | Optional |
| Side Hood Deflector/backstop (RH side) | Optional |
| Black paint in lieu of Red | Optional |
| Truck Mount Kit w/Steel Fenders | Optional |
| Factory Install of Truck Mount Kit | Optional |
| Wagon/Trailer Mount Kit | Optional |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | Optional |
| Side-to-Side Roll Tarp (electric) | Optional |
| *Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above | |
