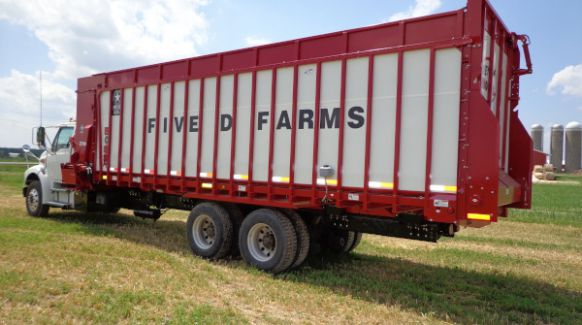

Meyer Farm 8222RT
8200 BOSS RT Front & Rear Unload Forage Box 8222RT
Overview:
The Meyer 8200RT Front & Rear Unload Forage Box is in a league of its own! No other Front & Rear Unload forage box offers you the capacity and features of the 8200RT. 8' interior width, 667XH pintle aprons, solid poly floor, clad tuff fiberglass sides, 81X cross conveyor chain with poly liner, deluxe cab control hyd... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Truck - Trailer (Chassis) - Wagon Mount options
- Full 8' interior width - the widest in the industry! Massive steel frame on 16" centers. High quality Urethane finish frame (red standard / black optional)
- Solid Poly Floor - high molecular virgin poly (no regrind)!
- Clad-Tuff fiberglass side panels standard. Easy clean up / good looks / allows for hauling of cured silage without corrosion.
- Deluxe, hydraulic cab-controlled front drive system standard - Independent controls on all functions. All from the perch of your truck or tractor! (30 GPM minimum required flow)
- RT Bevel Gear drive / no worm gears or chain reductions on front discharge. Simple 3 motor hyd drive reduces maintenance too.
- Strong 2" drive shafts front & rear, machined steel sprockets - not cast! Large diameter nylatron bearings hold more grease and last longer.
- HD splined coupler allows performs the front to rear unload drive conversion (rear drive pictured).
- 18" diameter drum augers in a tapered formation deliver a smooth flow of crop to the discharge conveyor.
- 14" side extension pkg available (solid or mesh). This package includes a 4th beater to maximize discharge quality in heaped loads!
- 24" wide cross conveyor - 81X extreme duty chain & poly conveyor floor! 24" hyd fold-down extension standard / 36" fold-down optional.
- Rear Unload System features dual drive for big loads - pulls from both sides
- Top Pivot Door with the patented Meyer Gate Delay System standard. Turn it on / Turn it off - no assistance needed! Door latches securely into drive shaft.
- LED turn signal lighting standard. Marker & clearance lights w/DOT tape package available
- Electric front to rear or side to side tarps available. (Require front enclosure)
- Scale packages available for truck, trailer chassis or wagon mount units.
Specifications
| DIMENSIONS | 8222RT |
| Inside Length | 22' |
| Inside Width | 97" |
| Inside Height - no extension | 72" |
| Inside Height w/14" extension | 85.5" |
| Overall Length | 27'1" |
| Overall Width w/ Convey. Ext | 119" |
| Overall Width w/o Convey. Ext | 117" |
| Overall Height - no extension (top of gate)* | 103.5" |
| Overall Height w/ 14" extension (top of gate)* | 115.5" |
| Overall Side Height - no ext. / with ext.* | 88.25/102" |
| Stringer Width (Truck/Trailer Mount) | 33.5" |
| Capacity (struck level) Cu. Ft. - w/o ext. | 1075 |
| Capacity (struck level) Cu. Ft. - w14" ext. | 1280 |
| SPECIFICATIONS | |
| Maximum Net Load (off road rating) | 25 ton |
| Apron Chains (Pintle) | 667XH |
| Cross Conveyor Apron Chain | HD81X |
| Rear Drive Shaft | 2-3/8" HD SOLID SHAFT |
| Front Hydraulic Direct Geardrive | Standard |
| Rear Unload Power Source | Dual #120 |
| Upright Spacing | 16" on Cntr |
| Upright / Cross member Construction | 2x2 Tubing |
| Rear Unloading Time (Dependent of Hyd. System) | 50 sec. |
| FEATURES | |
| Clad-Tuff Fiberglass Woven Side Panels | Standard |
| Solid Poly Floor - High Molecular | Standard |
| Rear Gate Delay System *new RT design!! | Standard |
| Automatic Rear Door Unlatch / Latch | Standard |
| Hydraulic Drive | Standard |
| Rear Transport Lights - LED (new location) | Standard |
| Marker/Clearance Lights (LED) & D.O.T. Tape | Optional |
| Personalized Farm Name on Sides | Standard |
| OPTIONS | |
| 14" Removable Side Extension (screen or solid) | Optional |
| +includes 4th beater assembly | |
| Double Center Opening Doors Hyd./Air (Barn Doors) | N/A |
| Grain Kit / Quick Attach for Top Pivot Door | N/A |
| Grain Kit / Quick Attach for Barn Door Gate | N/A |
| Side-mtd, LED Turn Signals in addition to std | Optional |
| Side Hood Deflector/backstop (RH side) | Optional |
| Black paint in lieu of Red | Optional |
| Truck Mount Kit w/ Steel Fenders | Optional |
| Factory Install of Truck Mount Kit | Optional |
| Wagon/Trailer Mount Kit | Optional |
| Front Enclosure | Optional |
| TARP SYSTEMS | |
| Front to Back Scissor Tarp (electric) | Optional |
| Side-to-Side Roll Tarp (electric) | Optional |
| *Height measurements - Straight Truck Mounted Units require hardware which adds approximately 1.5" to height listed above | |
