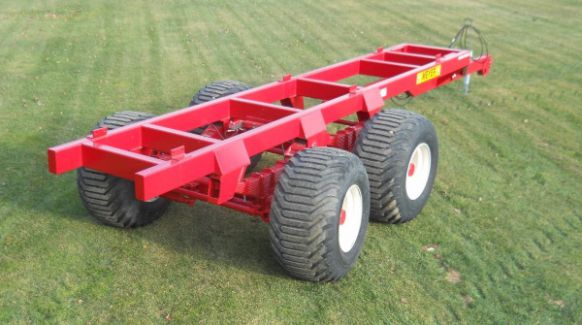

Meyer Farm XTSS2700+ Tandem Trailer / Suspension-Steer Axle - 27 Ton

Double tap to zoom



Features

  • XTSS2700+ Series Upgraded!
    This new "Plus" Series XTSS Tandem Suspension / Steer trailer received a host of upgrades to the hitch frame, structure, scale mounts and more!   It replace the XTSS2200 model.
  • HD Tubular Frame
    Meyer XTSS2700+ Trailers feature a 4x8 tubular base frame in 2 different lengths to accommodate your application.   Typically used for forage boxes & feeder boxes from 24-26' of load space plus other applications.
  • Robust Hitch Assemblies
    Meyer XTSS trailers feature a strong 6x8 tubular hitch system which is heavily fortified to handle the load.
  • Suspended Axles Standard / Rear Steerable on XTSS
    HD, 33,000# suspension axles are standard on this model as well as rear axle steering.
  • Tire Options
    The XTSS2700 Trailer can be ordered with 600/50x22.5 or a wider 700/40x22.5 bar tire package.
  • Locking Rear Axle
    The rear steer axle features a locking mechanism to aid in backing up or long distance travel out of the field.  (Hydraulic activated)
  • Brake Choices
    Brakes on both axles are standard equipment on the XTSS2700+.   Hydraulic hand lever or foot pedal packages available.
  • Standard Articulating Implement Hitch
    This HD Cast Articulating Implement Hitch is standard equipment on the XTSS2700+.   It offers excellent flexibility for uneven terrain and does require a hammer strap tractor draw-bar.
  • Scale Option
    The Meyer XTSS Series Trailer can be outfitted with a handy scale arrangement.   It features an 8 cell system mounted between the trailer and implement.

Specifications

Model XTSS2700 264 XTSS270 280
Style Tandem
Suspension
Steerable
Tandem
Suspension
Steerable
Suspension Leaf Spring Leaf Spring
Capacity (Trailer & Load) 54,000# 54,000#
Tread Width 100.6" w/710/45x22.5 100.6" w/710/45x22.5
Spindle Size 5.9" Axle 5.9" Axle
Axle Configuration Tandem - steerable
33,000# x 2
Tandem - steerable
33,000# x 2
Heavy Duty Hubs 10 Bolt - Grease Filled 10 Bolt - Grease Filled
Frame Design 4x8x1/4" Tubing 4x8x1/4" Tubing
Weight 5,950# w/600/50x22.5 8,770# w/710/45x22.5
Overall Length 30' 1" 31' 5"
Bed Length 42" 42"
Overall Width 128" w/710/45x22.5 128" w/710/45x22.5
Bed Width 42" 42"
Stake Spacing 33.5" std 42" Opt 33.5" std 42" Opt
Bed Height 53 1/2" w/710/45x22.5 53 1/2" w/710/45x22.5
Articulating Imp Hitch      1.5" or 2" Hammerstrap Hitch Req. Standard Standard
Brakes Hydraulic Manual
Hydraulic
Foot Pedal
Hydraulic Manual
Hydraulic
Foot Pedal
Hitch and Hitch Supports Extra Heavy Duty Extra Heavy Duty
Various Tire Sizes 710/45x22.5
710/50x26.5
710/45x22.5
710/50x26.5
Saftey Chain Optional Optional
