Meyer Farm XTS2200+ Tandem Trailer / Suspension Axles - 24 Ton
Chassis / Tandem XTS2200+ Tandem Trailer / Suspension Axles - 24 Ton
Overview:
The Meyer XTS2200+ Tandem Suspension Trailer features a Heavy Duty tubular frame with 24 ton capacity. It is specially designed for the faster road speeds of today's modern ag tractor. It is also better suited for long hauls from the field to the farm compared to traditional ag trailers. Suspension axles, oil bath... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- XTS2200+ Series Upgraded!
The new "Plus" Series XTS Tandem suspension trailer received a host of upgrades to the hitch frame, scale mounts and more! - HD Tubular Frame
Meyer XTS2200+ Series Trailers feature a 4x8 tubular base frame in 3 different lengths to accommodate all your applications. Typically used for forage boxes & feeder boxes from 22 - 26' of load space plus other applications. - Robust Hitch Assemblies
Meyer XTS2200+ trailers feature a stout 6x8" tubular hitch to handle heavy loads! Notice it is reinforced at all critical stress points. - Suspended axles standard on the XTS Series

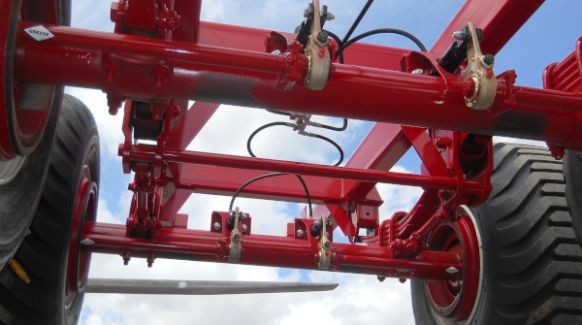

Twin 25,000# axles with suspension handle the load. These trailers are a perfect match for today's higher speed tractors. An XTS trailer is also a great choice when your hauls reach out 4 or more miles. - Oil Bath Hubs
All XTS2200+ trailers have Oil Bath Hubs for maximum lubrication and minimum heat buildup. - Tire Options
Tire Choices for the XTS2200+ include: 600/50x22.5 float, 700/40x22.5 float, 425/65x22.5 single truck tires or 11Rx22.5 dual truck tires - Brake ChoicesXTS
Suspension Trailers are come standard with brakes installed on the axles. It is however necessary to order a brake actuator package if you would like functioning brakes. (Hydraulic hand lever, hyd foot pedal or air systems available) - Standard Hitch Package
The XTS2200+ Suspension Trailers come standard with this swivel clevis hitch assembly. if you prefer, the articulating implement hitch is a no charge option. - Optional Articulating Implement Hitch
This articulating implement hitch is available as an option. It features a pivoting ball and an insert to switch from 1.5" to 2" pin. (Requires hammer strap draw-bar) - Scale Package
Meyer offers a 8 point scale package for the XTS Suspension trailer. Weigh bar mount between the trailer and the implement in this application.
Specifications
| Model | XTS2200 216 | XTS2200 240 | XTS2200 264 | XTS2200 280 |
| Style | Tandem w/ suspension | Tandem w/ suspension | Tandem w/ suspension | Tandem w/ suspension |
| Suspension | Leaf Spring | Leaf Spring | Leaf Spring | Leaf Spring |
| Capacity (Trailer & Load) | 48,000# | 48,000# | 48,000# | 48,000# |
| Tread Width | 91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
| Axle Configuration | Tandem - Non Steerable 25,000# x 2" |
Tandem - Non Steerable 25,000# x 2" |
Tandem - Non Steerable 25,000# x 2" |
Tandem - Non Steerable 25,000# x 2" |
| Heavy Duty Hubs | 10 Bolt - Oil bath | 10 Bolt - Oil bath | 10 Bolt - Oil bath | 10 Bolt - Oil Bath |
| Frame Design | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing |
| Weight | 5,540# w600/50x22.5 | 5,670# w/600/50x22.5 | 5,800# w/600/50x22.5 | 5,950# w/600/50x22.5 |
| Overall Length | 25' 5.5" | 27' 5.5" | 30' 5.5" | 31' 7.6" |
| Bed Length | 18' | 20' | 22' | 23' 4" |
| Overall Width | 106 1/2" w/600/50x22.5 | 106 1/2" w/600/50x22.5 | 106 1/2" w/600/50x22.5 | 106 1/2" w/600/50x22.5 |
| Bed Width | 42" | 42" | 42" | 42" |
| Stake Spacing | 33.5" std / 42" Opt | 33.5" std / 42" Opt | 33.5" std / 42" Opt | 33.5" std / 42" Opt |
| Bed Height | 44" w/600/50x22.5 |
44" w/600/50x22.5 |
44" w/600/50x22.5 |
44" w/600/50x22.5 |
| Adj.Swivel Clevis | Standard | Standard | Standard | Standard |
| Articulating Imp Hitch 1.5" or 2" Hammerstrap Hitch Req. |
Optional | Optional | Optional | Optional |
| Brakes | Hydraulic Manual Hyd. Foot Pedal Air |
Hydraulic Manual Hyd. Foot Pedal Air |
Hydraulic Manual Hyd. Foot Pedal Air |
Hydraulic Manual Hyd. Foot Pedal Air |
| Hitch and Hitch Supports | Extra Heavy Duty | Extra Heavy Duty | Extra Heavy Duty | Extra Heavy Duty |
| Various Tire Sizes | 600/50x22.5 700/40x22.5 425/65X22.5 |
600/50x22.5 700/40x22.5 425/65X22.5 |
600/50x22.5 700/40x22.5 425/65X22.5 |
600/50x22.5 700/40x22.5 425/65X22.5 |
| Safety Chain | Optional | Optional | Optional | Optional |
