Meyer Farm XTH2200+ Tandem Trailer / Oscillating Axles 22 Ton
Chassis / Tandem XTH2200+ Tandem Trailer / Oscillating Axles 22 Ton
Overview:

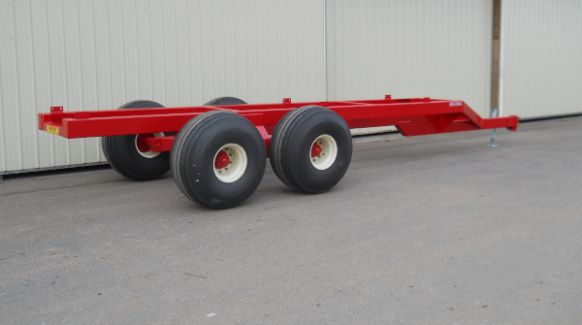

The Meyer XTH2200+ Tandem Chassis features a Heavy Duty tubular frame with 22 ton capacity. Robust oscillating axles, 3 1/2" spindles and 10 bolt Ag Hubs. The XTH Trailer Chassis from Meyer sets the standard for strength, traction and manuverabilty weather you mate it with a forage box or other application. The XT... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- XT2200+ Series Upgraded!
The new "Plus" Series XT Tandem Trailer received a host of upgrades to the hitch frame and axle clearance areas. - HD Tubular Frame
Meyer XT2200+ Series Trailers feature a 4x8 tubular base frame in 4 different lengths to accomodate all your applications. Typically used for forage boxes from 20 - 26' of load space plus other applications! - Robust Hitch Assemblies
Meyer XT2200+ trailers feature a stout 6x8" tubular hitch to handle heavy loads! Notice it is reinforced at all critical stress points. - Oscillating Tandem Beams
These sturdy oscillating wings contain massive, greasable pivot bushings. 3 1/2" spindles and 15,000# / 10 bolt hubs are standard! - Tire Options (550/45x22.5 pictured)
Tire options include: 550/45x22.5 bar tires, 600/50x22.5* bar tires, 425/65x22.5 used truck tires
*600 tires require special riser - HD Clevis Hitch
This clevis hitch is standard equipment of the XT Series trailer. - Optional Swivel Hitch
Check out our optional swivel hitch for uneven terrain! - Optional Articulating Implement Hitch
The ultimate hitch - this optional cast hitch requires a hammerstrap tractor drawbar. It features a pivoting ball and adjustments for 1.5" or 2" pin. - Brake packes / XT Series
XT2200+ Series Trailers are available with hydraulic brakes which can be controlled with hydraulic remote valves or foot pedal controller if your tractor is equipped. Meyer also offers a surge brake package for this model. - Scale Option
XT2200+ Tandem Trailers have a 5 point scale system as an option.
Specifications
| Model | XTH2200 216 | XTH2200 240 | XTH2200 264 | XTH2200 280 |
| Style | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam |
| Capacity Trailer & Load | 44,000 lbs. | 44,000 lbs. | 44,000 lbs. | 44,000 lbs. |
| Tread Width | 91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1" w/600/50x22.5 87.3" w/425/65x22.5 |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
91.1"" w/600/50x22.5 87.3"" w/425/65x22.5" |
| Spindle Size | 3.5" | 3.5" | 3.5" | 3.5" |
| Axle Configurantion | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam |
| Heavy Duty Hubs | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH | 10 Bolt 15,000# at 10 MPH |
| Frame Design | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing |
| Weight | 3940# w/600/50x22.5 | 4,070# w/600/50x22.5 | 4,210# w/600/50x22.5 | 5,010# w/600/50x22.5 |
| Overall Length | 25' 5.5" | 27' 5.5" | 30' 5.5" | 31' 7" |
| Bed Length | 18' | 20' | 22' | 23' 4" |
| Overall Width | 108.8" w/550/45x22.5 115.7" w/600/50x22.5 |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
108.8"" w/550/45x22.5 115.7"" w/600/50x22.5" |
| Bed Width | 42" | 42" | 42" | 42" |
| Stake Spacing | 33.5" Std 42" Opt | 33.5" Std 42" Opt | 33.5" Std 42" Opt | 33.5" Std 42" Opt |
| Bed Height | 45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
45.6"" w/550/45x22.5 47"" w/600/50x22.5" |
| Adj. Clevis Hitch | Standard | Standard | Standard | Standard |
| Adj. Swivel Clevis Hitch | Optional | Optional | Optional | Optional |
| Articulating Imp Hitch 1.5" or 2" Hammerstrap Hitch Req. | Optional | Optional | Optional | Optional |
| Brakes | Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
Hydraulic Surge Hydraulic Manual Hyd. Foot Pedal |
| Hitch and Hitch Supports | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| Various Tire Sizes | 550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
550/45x22.5 600/50x22.5 425/65X22.5 |
| Safety Chain | Optional | Optional | Optional | Optional |
