Meyer Farm XT2200+ Tandem Trailer / Oscillating Axles 22 Ton / NOT AVAILABLE
Chassis / Tandem XT2200+ Tandem Trailer / Oscillating Axles 22 Ton
Overview:

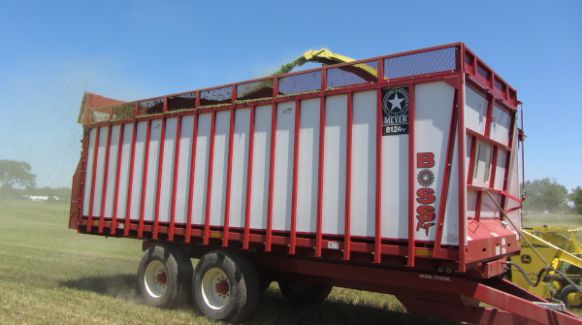

The Meyer XT2200+ Tandem Chassis features a Heavy Duty tubular frame with 22 ton capacity. Robust oscillating axles, 3 1/2" spindles and 10 bolt Ag Hubs. The XT Trailer Chassis from Meyer sets the standard for strength, traction and maneuverability weather you mate it with a forage box or other application. The XT... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- XT2200+ Series Upgraded!
The new "Plus" Series XT Tandem Trailer received a host of upgrades to the hitch frame and axle clearance areas. - HD Tubular Frame
Meyer XT2200+ Series Trailers feature a 4x8 tubular base frame in 4 different lengths to accommodate all your applications. Typically used for forage boxes from 20 - 26' of load space plus other applications! - Robust Hitch Assemblies
Meyer XT2200+ trailers feature a stout 6x8" tubular hitch to handle heavy loads! Notice it is reinforced at all critical stress points. - Oscillating Tandem Beams
These sturdy oscillating wings contain massive, greasable pivot bushings. 3 1/2" spindles and 15,000# / 10 bolt hubs are standard! - Tire Options (550/45x22.5 pictured)
Tire options include: 550/45x22.5 bar tires, 600/50x22.5* bar tires, 425/65x22.5 used truck tires
*600 tires require special riser - HD Clevis Hitch
This clevis hitch is standard equipment of the XT Series trailer. - Optional Swivel Hitch
Check out our optional swivel hitch for uneven terrain! - Optional Articulating Implement Hitch
The ultimate hitch - this optional cast hitch requires a hammer strap tractor drawbar. It features a pivoting ball and adjustments for 1.5" or 2" pin. - Brake packages / XT Series
XT2200+ Series Trailers are available with hydraulic brakes which can be controlled with hydraulic remote valves or foot pedal controller if your tractor is equipped. Meyer also offers a surge brake package for this model. - Scale Option
XT2200+ Tandem Trailers have a 5 point scale system as an option.
Specifications
| Model | XT2200+ 216 | XT2200+ 240 | XT2200+ 264 | XT2200+ 280 |
| Style | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam | Tandem O-Beam |
| Capacity | 44,000 lbs | 44,000 lbs | 44,000 lbs | 44,000 lbs |
| Tread Width | 82" w/21.5Lx16.1 82" w/425/65 |
82" w/21.5Lx16.1 82" w/425/65 |
82" w/21.5Lx16.1 82" w/425/65 |
82" w/21.5Lx16.1 82" w/425/65 |
| Spindle Size | 3.5" | 3.5" | 3.5" | 3.5" |
| Heavy Duty Hubs | 10 Bolt 15,000# at 10 MPH |
10 Bolt 15,000# at 10 MPH |
10 Bolt 15,000# at 10 MPH |
10 Bolt 15,000# at 10 MPH |
| Frame Design | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing | 4x8x1/4" Tubing |
| Weight | 3680# w/21.5Lx16.1 |
3810# w/21.5Lx16.1 |
3950# w/21.5Lx16.1 |
4705# w/21.5L x16.1 |
| Overall Length | 25' 5.5" | 27' 5.5" | 30' 5.5" | 31' 7" |
| Bed Length | 18' | 20' | 22' | " 23' 4" |
| Overall Width | 102.5" w/ 21.5L x 16.1 98.5" w/ 425/65x22.5 |
102.5" w/ 21.5L x 16.1 98.5" w/ 425/65x22.5 |
102.5" w/ 21.5L x 16.1 98.5" w/ 425/65x22.5 |
102.5" w/ 21.5L x 16.1 98.5" w/ 425/65x22.5 |
| Bed Width | 42" | 42" | 42" | 42" |
| Stake Spacing | 42" or 33.5" (Opt. or Std) |
42" or 33.5" (Opt. or Std) |
42" or 33.5" (Opt. or Std) |
42" or 33.5" (Opt. or Std) |
| Bed Height | 44" w/ 21.5Lx16.1 43 1/4" w/425/65x22.5 |
44" w/ 21.5Lx16.1 43 1/4" w/425/65x22.5 |
44" w/ 21.5Lx16.1 43 1/4" w/425/65x22.5 |
44" w/ 21.5Lx16.1 43 1/4" w/425/65x22.5 |
| Adj. Clevis Hitch | Standard | Standard | Standard | Standard |
| Options | ||||
| Surge Brakes | Optional | Optional | Optional | Optional |
| Swivel Clevis Hitch | Optional | Optional | Optional | Optional |
| 4" Riser Package | N/A | N/A | N/A | N/A |
