Loftness 73AX

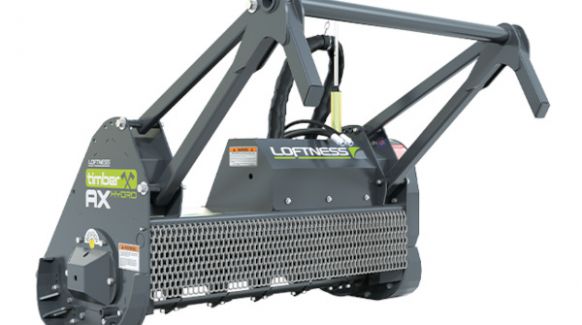

Timber Ax 73AX
Overview:
Skid Steer / Compact Track Loader
Because of its unique reverse rotor rotation, the Timber Ax mulching head delivers results with more efficiency. Keeping the cutting action of the hardened steel alloy blades off the ground enables the Timber Ax to take on dense brush and trees in one pass with less horsepower…even ... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Timber Ax Rotor
The 17-inch-diameter Timber Ax rotor spins at 1,700 RPM in an upward rotation. - Knives
The Timber Ax rotor has two rows of ultra-sharp hardened steel knives. The rigid, pocket-style knife mounts help make it easy to sharpen the blades on the machine. They can also be easily replaced if damaged. - Fixed-Displacement Gear Motor
The high-pressure gear motor is a reliable, cost-effective workhorse for use with hydraulic systems ranging from 22-40 GPM and 40-85 hydraulic horsepower. - 4-Groove Banded Belt
A four-groove banded belt system with spring-loaded idler efficiently transfers power to the rotor. - Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Adjustable Skid Shoes
The skid shoes are adjustable from 1 to 3 inches. - Adjustable Push Bar
Constructed with integrated, welded claw hooks, the bar helps push falling trees and brush away from the power unit, while also allowing them to be properly positioned for efficient feeding into the head. - Performance Monitoring
An integrated PSI gauge that monitors the hydraulic load is positioned for easy viewing from the skid steer cab. It helps keep the Timber Ax at the optimum hydraulic load for peak performance throughout an application. - Premium Strength Steel Housing
All body components are laser cut from premium strength steel. Also, abrasion resistant steel is used in high-wear areas - Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Universal Skid Steer Mount
The universal mount allows the Battle Ax to be easily used with any brand or model of skid steer or compact track loader. - 17-Inch-Diameter Rotor
- 2-3/16″ Roller Bearings
- Dual Cross-Over Relief Protection
- Fast Rotor Shutdown
- 2-Year Warranty
The Timber Ax comes standard with an industry-leading 2-year warranty.
Specifications
| Model | 73AX |
| Cutting Width | 73" |
| Overall Width | 91.5" |
| Height | 52" |
| Number of Knives | 16 |
| Weight | 2416 lbs |
| Rotor Bearings | 2-3/16 |
| Hydraulic Horsepower Range | 40-85 Hydraulic HP |
