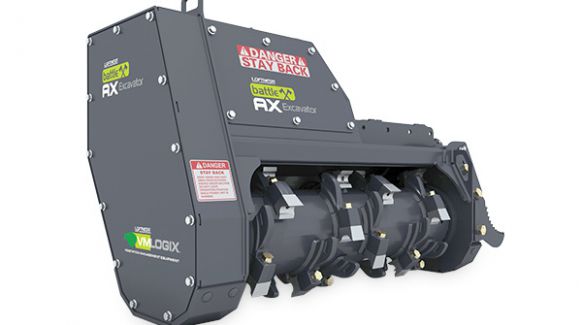

Loftness 51BX30
Battle Ax - 30 Series 51BX30
Overview:
18,000-36,000 lb Excavators
The Loftness 30 Series Battle Ax is optimized for use on excavators ranging from 18,000 to 36,000 pounds. It features the popular depth gauge design and Loftness exclusive two-stage cutting chamber. This maximizes performance and gives you the ability to create some of the smallest partic... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw. - Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes. - Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket. - High-Performance Teeth Options
Choose from three cutting tooth options:
Quadco planer blades
Hard-surface Quadco blades
Double carbide teeth - Adjustable-Displacement Piston Motor
The 30 Series Battle Ax features a 105cc adjustable displacement piston motor for excavators with hydraulic systems ranging from 20 to 60 gallons per minute and up to 6,000 PSI (45 to 150 hydraulic horsepower). This motor turns the rotor from 1,800 to 2,500 RPM and can be manually adjusted for fine-tuning performance on a variety of excavators. - Synchronous Belt Drive
The positive drive, cog belt and sprocket design increases efficiency and requires less maintenance than other drive types. - Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Premium Strength Steel Housing
The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions. - Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Optional Spade Hook/Hydraulic Thumb
The spade hook is a useful tool for positioning material to be mulched. A hydraulic thumb is also optional for added versatility. - Multiple Mounting Options
A variety of mounts are available for attaching the Battle Ax to any make of excavator. Blank, pin-on and pin grabber styles are available. - 17-Inch-Diameter Rotor
- 2-3/16″ Piloted Double Taper Roller Bearings
- 2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.
Specifications
| Model | 51BX30 |
| Cutting Width | 51" (1.3 m) |
| Recommended Excavator Weight Range (in Pounds) | 18K-36K |
| Overall Width | 66.375" (1.7 m) |
| Number of Teeth | 26 |
| Weight (without mount) | 2,210 LBS (1,002.4 kg) |
| Crated Weight | 2,360 LBS (1,070.5 kg) |
| Hydraulic Horsepower Range | 45-150 Hydraulic HP |
