Loftness 841S

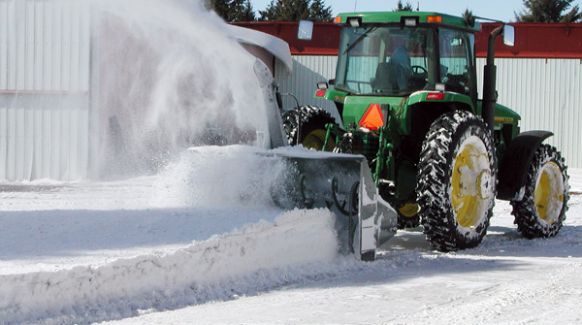

![](/assets/Uploads/_resampled/CroppedImage582325-Loftness-841S-2019.jpg)
Features
Spout
- Hydraulic spout rotation
- Gear-driven spout 270 degrees
- 11-inch diameter: 841S
- 14-inch diameter: 961S
- Manually adjustable deflector (hydraulic optional)
Discharge Fan
- 27-inch diameter housing, 3 blades, 8-inch-deep fan housing: 841S
- 30-inch diameter housing, 4 blade, 11-inch deep fan housing: 961S
- 540 RPM only
Augers
- Heavy-duty open-spoke design
- 16-inch: 841S
- 24-inch: 961S
Cutting Capacity
- 32-inch cutting height and 84-inch width: 841S
- 40-inch cutting height and 96-inch width: 961S
Gearbox
- 120 HP oil-bath gearbox
Mount
- Standard three-point hitch
- Category I or II welded hitch: 841S
- Designed for free-link only
-
- Category II or III (Quick-hitch only): 961S
Easy-Access Shear Bolts
- PTO shaft
- Auger drive sprocket
- Auger driven sprocket
The Nuts and Bolts
Drive and Power Requirements
- 540 RPM PTO only
- 40 to 120 HP
Components
- No. 60 roller chain
- 1-1/2-inch auger bearings
- Replaceable hardened steel, bolt-on cutting edge
- Adjustable skid shoes
Construction
- High-quality craftsmanship
- Laser-cut components
- 12-gauge steel body
- 1/4-inch end plates
- 3/8-inch auger flighting
Specifications
MODEL | 841S |
Series | S-small |
Width | 84 |
Height | 32 |
Input Power | 40-120 hp |
Weight | 877 |
Fan Diameter | 27 in. |
Fan Housing Depth | 8 |
Diameter of Auger | 16 in. |
Number of Augers | 1 |
Gearbox | 120 hp |
Chain | #60 |
Bearings | 1-3/8 in |
Mount | Cat. 1 or 2 |
Spout Diameter | 11 in. |
*QUICK-HITCH REQUIRED | |
Specifications and data are subject to change without notice. |
