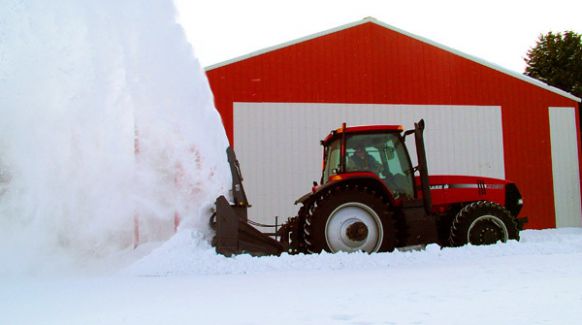

Loftness 1203I
Features
Spout
- Hydraulic spout rotator
- 14-inch diameter
- Gear-driven spout with 270 degrees of movement
- Truck-loading spout options available
- Manually adjustable deflector (hydraulic optional)
Discharge Fan
- 36-inch diameter
- 12-inch deep fan housing
Augers
- 16-inch diameter, open-spoke augers
- Lateral auger-locking device
Cutting Capacity
- Dual augers: 48-inch cutting height
- Triple augers: 66-inch cutting height
- Available in 108- and 120-inch widths
Gearbox
- 200 HP reduction gearbox
Hitch
- Heavily reinforced Category II or III welded three-point hitch (quick hitch required)
- Hitch stand included
Easy-Access Shear Bolts
- PTO shaft
- Auger drive sprocket
- Auger driven sprocket
The Nuts and Bolts
Drive and Power Requirements
- Input: 1,000 RPM tractor PTO
- Output: 540 fan speed
- 140 to 200 HP
- Easy access shear bolt protection
Components
- No. 80 roller chain
- 1 1/2-inch bearings
- Replaceable hardened steel, bolt-on cutting edge
- Extra-large adjustable skid shoes
Construction
- High-quality craftsmanship
- Laser-cut components
- 10-gauge steel body
- 5/16-inch reinforced end plates
- 3/8-inch auger flighting
