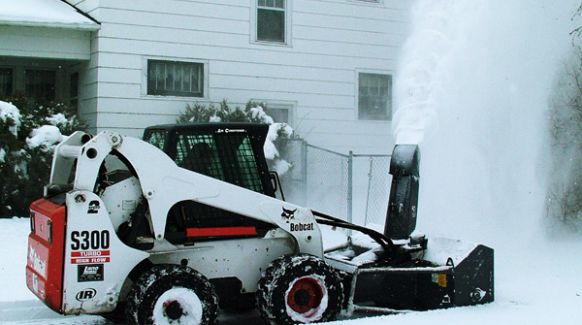

Loftness 781D2HH
![](/assets/Uploads/_resampled/CroppedImage582325-Loftness-781D2hh-2019.jpg)
Features
Spout
- 11-inch diameter discharge spout
- Gear-driven with 270 degrees of movement
- Electric over hydraulic spout controls
- Hydraulic spout rotation and deflector
Discharge Fan
- 24-inch diameter housing
- 5 blades
Auger
- 16-inch diameter open-spoke main auger
Cutting Capacity
- 32-inch cutting height
- Available in 72-, 78- and 84-inch widths
Gearbox
- 120 HP oil-bath gearbox
Mount
- Standard universal skid steer mount
The Nuts and Bolts
Drive and Power Requirements
- Hydraulic drive
- 21 to 40 GPM
- Up to 4,500 psi
Components
- Dual hydraulic drive
- Two-stage design
- No. 60 roller chain
- 1 3/8-inch bearings
- Replaceable hardened steel, bolt-on cutting edge
- Adjustable skid shoes
Construction
- High-quality craftsmanship
- Laser-cut components
- 12-gauge steel body
- 1/4-inch end plates
- 3/8-inch auger flighting
Specifications
MODEL | 781D2HH |
Series | high-flow |
Width | 78 |
Height | 32 |
Input Power | 26-32 gpm |
Weight | 1020 |
Fan Diameter | 24 in. |
Fan Housing Depth | 8 |
Diameter of Auger | 16 in. |
Number of Augers | 1 |
Gearbox | 120 hp |
Chain | #60 |
Bearings | 1-3/8 in. |
Mount | universal skid |
Spout Diameter | 11 in. |
Specifications and data are subject to change without notice. |
