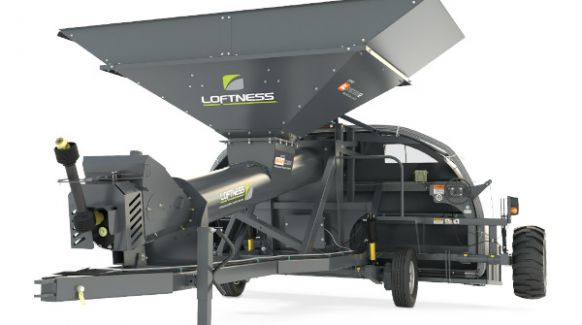

Loftness GBL 12C
12-Foot Grain Bag Loader GBL 12C
Overview:
Need a commercial-grade grain bagger with even more capacity? Look no farther than the GBL12 Grain Bag Loader from Loftness, which is compatible with 12-foot-diameter grain bags up to 500 feet long. Featuring heavy-duty construction with fill rates up to 500 bushels per minute, the GBL12 works fast and is built to last.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Loads 12-Foot-Diameter Grain Bags up to 500 Feet Long
- Bag Fill Auger
Constructed of 1/4-inch thick plate abrasive resistant steel flighting and supported by 2-inch bearings, the 20-inch diameter main fill auger delivers grain to the tunnel at rates up to 500 bushels per minute. - Bag Tunnel
Engineering to maintain optimal grain distribution, in conjunction with smooth and flawless bag feed, is the starting point for precise control and nonstop operation. The GBL12 one-piece tunnel is designed to distribute grain evenly throughout the profile of the bag. - Bag Retention System
Maintaining a simple approach to a complex and important feature, the GBL12 Bag Retention System removes all doubt regarding proper bag loading and rigging. The tensioning cord and ropes are adjustable for precise control in any application. - Jib Crane and Trolley System
All 12-volt electric, the jib crane and powered trolley make quick work of the bag loading process. Additionally, all bag loading functions can be controlled via a wireless remote. - Cradle
Twelve-foot bags weigh around 1,000 pounds, and the cradle speeds up bag management and handling. Keeping your team loading grain instead of bags was a priority with the design of the GBL12. - Bag Pan
The bag pan is lowered to install the bag into position around the tunnel. Once in position, the bag pan is then raised into the proper operating position to support the bottom of the bag during filling. The bag pan can be fine-tuned through the winch system. - Bag Loading Tarp
When in the field, Loftness makes sure bags load with minimal effort and without misalignment. The bag loading tarp is the answer. Working in tandem with the powered trolley system, it greatly reduces the amount of labor required to position the bottom of the bag onto the bag pan. - Adjustable Axle Height
Axle height can be consistently raised/lowered using a pin adjustment system. - Main Hopper
The all steel 8-foot 1-inch by 14-foot 10-inch hopper is an easy target to hit, helping reduce spillage. It can be loaded from either side or from both sides simultaneously. The top rim is only 129 inches from the ground, giving easy access to grain carts and combines. - Transfer Case
The industry-proven transfer case gearbox splits the drive power between the swing hopper system and the main auger. When loading directly into the main hopper with a combine or cart, the power to the swing auger and main auger can be disconnected by removing a chain coupling. - PTO Drive Shaft
Power to the drivetrain is delivered through a Walterscheid W2400 Series PTO shaft protected by an easily accessible shear bolt. Power is delivered to the discharge auger shaft directly through the gearbox. It is available in your choice of PTO spline sizes. - Transport Wheel System
Properly rated tires and axles with electric brakes make road transport safe and legal. - Brake Pressure Control
The need for precise speed control when loading 12-foot bags is critical. Applying brake pressure to both sides simultaneously is achieved through a rotary hand wheel that controls the brake master cylinder. Pressure is displayed via a large liquid-filled gauge mounted next to the control wheel. - Disc Brakes
Complementing the precise brake pressure control system are large 12-inch diameter disc brake rotors and calipers. Used in the automotive racing industry, these brake components were chosen for their performance, high degree of reliability and availability. - Traction Tires
The 15L 19.5-inch SureGrip traction tires have a chevron-style tread for maximum grip. - Industry Standard Parts
Industry standard, easy-to-get parts reduce downtime during your critical harvest window. Standard non-proprietary bearings, chains, U-joints and brake system parts are available at most farm, fleet or auto parts suppliers. - Heavy-Duty Hitch Jack
- Optional Truck Unloading Auger
Load grain bags from grain trailers and semis with the 12-Foot Truck Unloading Auger. - Optional Work Light Kit
Don’t let the dark slow down your bagging operation. The optional work light kit includes three magnetically mounted LED lights, each producing 2,400 lumens. - 120 HP/6 GPM and 1,000 PTO RPM Tractor Requirement
The universal mount allows the Battle Ax to be easily used with any brand or model of skid steer or compact track loader.
Specifications
| Model Number: | GBL 12C |
| Operating Weight: | 9,860 pounds |
| Operating Dimensions | |
| Length | 24' 2" |
| Width | 19' 7-1/2" |
| Height | 12' 9" |
| Storage/Travel Dimensions | |
| Length | 24' 2" |
| Width | 19' 7-1/2" |
| Height | 12' 9" |
| Hopper Dimensions | |
| GL-12 Loader | 8' x 14' 10" |
| PTO | |
| RPM | 1,000 |
| Horsepower | 120 |
| Shaft Size/Type | 1-3/8 or 1-3/4 |
| PTO Driveline Type | Walterscheid W2400 |
| Hydraulics | |
| GPM (required) | 6 |
| PSI (required) | 2,000 |
| Connector Type | Quick Couplers |
| Auger Sizes | |
| Primary Auger | 20" / 540 RPM |
| Wheels / Tires | |
| Wheel Size | 40" |
| Tire Size | 15L-19.5 |
| Tire Type | SureGrip Traction |
| Operational Braking System | Hydraulic Disc |
| Transport Braking System | Electrical Trailer Brakes |
| Performance | |
| Transfer Capacity | 30,000 Bushels/hr |
| Bag Handling Capacity | |
| Diameter | 12' Bags |
| Max. Length | 500' |
| Specifications and data are subject to change without notice. |
