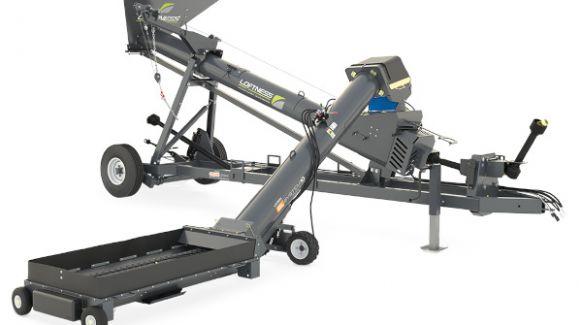

Loftness 10-Foot System Auger
10-Foot Truck Unloading Auger 10-Foot System Auger
Overview:
Need to transfer grain from a truck into a grain bag? The Loftness Truck Unloading Auger is perfectly matched for the GBL10 grain bag loader. The versatile swing hopper can accept grain from bottom traps, side chutes or dump trailers. And with a transfer rate of 11,900 bushels per hour, trucks can dump in plenty of time to catch the next load.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Swing Hopper
The low profile swing hopper is the key to successful truck unloading. Twin 7-inch diameter pan augers move grain quickly from the truck’s discharge into the 13-inch diameter swing auger. Hopper height is 12 inches or 19 inches with extensions. - Hopper Drive Wheels
The hydraulic-drive hopper wheels are used to move the swing hopper into position under the truck’s discharge. The traction tires are foam filled to eliminate air loss from bead failure. - Hopper Lift
The hopper lift is used to apply down pressure to the drive wheels when positioning the swing hopper. The wheels are then hydraulically lifted off the ground to allow the hopper to rotate on the skid plate. The drive wheels can be lowered to the ground to reposition the hopper while dumping, if needed. - Hopper Gage Wheels
Free-wheeling, rigid gage wheels are adjustable for hopper height control. Solid rubber tires support the far end of the hopper when swinging under the truck’s discharge. The swing hopper is designed to rotate under the truck’s discharge as the bag loader advances. The skid plate in the center of the hopper helps provide a pivot point for rotation. - Hydraulic Valve
The hydraulic control valve is located on the swing hopper auger. The operator has excellent visibility and control when positioning the swing hopper under a moving or stationary truck. - Swing Auger Unit
The articulating 13-inch diameter swing auger provides easy reach and positioning control when aligning the hopper under the truck’s discharge chute. When the job is done, the same pivoting allows the hopper to swing out of the way. - Main Auger
The high-speed, 13-inch diameter main stationary lift auger moves grain into the hopper of the bag loader. - Transition Auger
The backbone of the swing auger/hopper system, the 13-inch diameter transition auger delivers grain to the pivot point over the base of the main auger. - Hopper Transport
The swing hopper and auger are easily winched up into transport position with a cable/pulley system. Transport chains are deployed once the hopper is in position. Cable tension is then released for transport. - Hopper Winch
The hopper transport winch is easy to reach from ground level. It is hand operated for years of trouble-free service. Electric or hydraulic operated winches are optional. - Drive Train
The shear bolt protected drive train will power the entire machine. The transfer case divides the power to drive the truck auger and GBL10. This gearbox reduces the 1,000 RPM PTO speed to 540 RPM to drive the swing auger and the main tube auger. - Transfer Case
The industry-proven transfer case gearbox splits the drive power between the swing hopper system and the main auger. When loading directly into the bag loader’s main hopper with a combine or cart, the power to the swing auger and main auger can easily be disconnected by removing a short PTO shaft. No tools required. - Chain Drive
The power is transferred and split from the PTO shaft to the transfer case and to the bag loader drive via a heavy-duty No. 60 double chain drive system. Chain drive shafts are supported by opposing dual greaseable bearings. An easy-to-open panel gives access to all of the drive system components. - Standard Parts
Use of industry standard, easy-to-get replacement parts reduces downtime during your critical harvest window. Standard nonproprietary bearings, chains and U-joints are available at most fleet or auto parts suppliers. - 120 HP/ 6 GPM Tractor Required
Specifications
| General | |
| Weight | 4,540 lbs (kit only) |
| Operating Dimensions | |
| Length | 30' 1" with GBL |
| Width | 24' 10" |
| Height | 10' 9" |
| Storage/Travel Dimensions | |
| Length | 30' 1" with GBL |
| Width | 12' 10" |
| Height | 10' 9" |
| Hopper Dimensions | |
| GL-10 Truck Unloading Auger | 3' 3-1/2" X 6' 8-1/2" X 12" |
| GL-10 Truck Unloading Auger w/extension | 3' 3-1/2" X 6' 8-1/2" X 19" |
| PTO | |
| RPM | 1,000 |
| Horsepower | 120 |
| Shaft Size/Type | 1 3/8" or 1 3/4" |
| PTO Driveline Type | Walterscheid W2400/ Weasler 35R |
| Hydraulics | |
| GPM (required) | 6 |
| PSI (required) | 2,000 |
| Connector Type | Quick Couplers |
| Auger Sizes | |
| Primary Auger | 13" / 540 RPM |
| Secondary Auger | 13" / 540 RPM |
| Twin Hopper Auger | 7" / 750 RPM |
| Wheels/Tires | |
| Op. Wheels/Size/Type | 15" 16-6.5 Foam Filled |
| Transp. Wheels/Size/Type | 245 / 70 R17.5 Highway |
| Performance | |
| Transfer Capacity | 11,900 Bushels/hr |
