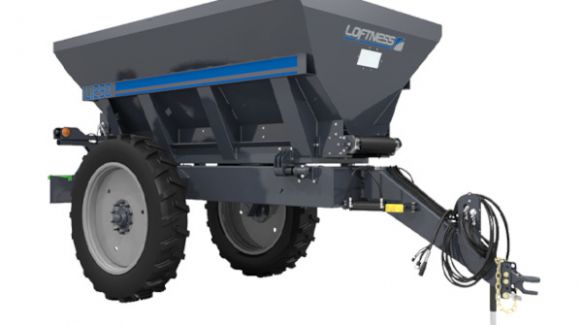

Loftness 12-Ton Lime/Fertilizer Spreader
Fertilizer Spreaders 12-Ton Lime/Fertilizer Spreader
Overview:
If you have a need to spread both lime and fertilizer, then you need to check out the Loftness L1230 12-ton lime/fertilizer spreader. Featuring a belt-over-chain conveyor design, tall frame clearance and obstruction-free stainless steel hopper, it offers plenty of versatility for excellent return on investment. Plus, i... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Variable Rate Ready
- Hydraulic Conveyor Drive
The hydraulic conveyor drive allows the conveyor speed to operate independently of the ground speed. - Controlled Spinner Drive
The controlled spinner drive works in conjunction with a speed sensor, allowing the operator to set the desired spinner speed from the cab to match the desired spread width. Simply enter the desired spinner speed, and the spinners will adjust automatically to the programmed speed. - Belt-Over-Chain Design
A 24-inch belt-over 88C chain design is ideal for providing a consistent flow of lime to the spinners, and also works well for fertilizer applications. - Dual Stainless-Steel Spinners
Dual stainless-steel spinners produce a consistent spread pattern from 20 to 60 feet wide for lime, or 40 to 90 feet wide for fertilizer. - 41-Inch Frame Clearance
A 41-inch frame clearance allows the spreader to be used for in-season applications in row crops. - Adjustable Wheel Spacing
The wheels are adjustable from 80 to 120 inches wide to accommodate a variety of row spacings. 90- to 152-inch adjustable wheel spacing is optional. - Obstruction-Free Interior
The 409 stainless-steel hopper is smooth with a 50-degree slope, minimal flat surfaces and no internal gussets or plates to accumulate lime or fertilizer. This results in a much cleaner system that maximizes material flow and helps prevent corrosion. - Two-Bearing Design
Only two bearing part numbers for all driveline components on the machine greatly simplifies the maintenance and replacement process. - Adjustable Hitch
The hitch has a moveable clevis to accommodate a wider range of drawbar heights, and allows for leveling of the spreader. The hitch is also integral to the frame, while the suspension pulls from the hitch to lower the amount of frame stress. - Integral Lights
- Wheel/Tire Options
A variety of wheel and tire options are available, including duals. - Optional Integral Scale
Closely monitor application rates and the amount of material remaining in the hopper with the integral four-point scale option. - Optional Roll Tarp
An optional roll tarp can be installed to protect material within the hopper from weather elements. - Optional Steerable Hitch
A steerable hitch provides maximum control of the spreader on sidehills and turns.
Specifications
| Model | L1230 |
| Lime Spread Pattern (Dual) (Hydraulic) | 20' - 60' |
| Fertilizer Spread Pattern (Dual) (Hydraulic) | 40' - 90' |
| Hopper Capacity (Struck) | 266 cu. Ft. |
| Hopper Capacity (Heaped) | 362 cu. Ft. |
| Weight (Empty) | 6,480 lbs |
| Max Gross Weight | 28,800 lbs. |
| Frame/Crop Clearance | 41 in. |
| Overall Length | 246" |
| Overall Width | 98" - 135" |
| Overall Width (With 90-152 Spacing Option) | 103" - 167" |
| Overall Height | 117" |
| Hopper Length | 155" |
| Hopper Width | 97" |
| Hopper Depth | 49" |
| Tires (Standard) | 380/90-R46 |
| Axles/Suspension | 6x6 in. - infinitely adjustable from 80"-120" or 90"-152" |
| Frame | 1/4", hot-rolled sheet, channel-formed |
| Hitch | 1/4", hot-rolled sheet, channel-formed |
| Drawbar | Bolt-in, adjustable position |
| Hopper | 12-gauge, 409 stainless steel |
| Skid | 12-gauge, 409 stainless steel |
| Gate | 7-gauge, 409 stainless steel |
| Conveyor Chain | 24" belt-over 88C chain w/ 1/2" x 2" slots |
| Spinner Dish | 19" dia. 7-gauge, 409 stainless steel |
