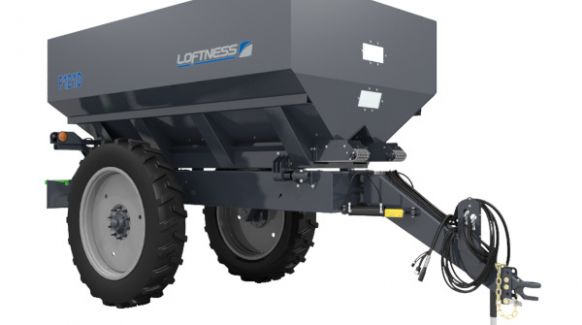

Loftness 12-Ton Fertilizer Spreader
Fertilizer Spreaders 12-Ton Fertilizer Spreader
Overview:
12-ton capacity. Variable rate ready. Tall frame clearance. Free-flowing interior. Heavy-duty stainless steel construction. There are many reasons why people are choosing the F1210 to spread their fertilizer. It gives farmers control over their own fertilizer programs with precision capabilities and long-lasting durabi... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Variable Rate Ready
- Hydraulic Conveyor Drive
The hydraulic conveyor drive allows the conveyor speed to operate independently of the ground speed. - Controlled Spinner Drive
The controlled spinner drive works in conjunction with a speed sensor, allowing the operator to set the desired spinner speed from the cab to match the desired spread width. Simply enter the desired spinner speed, and the spinners will adjust automatically to the programmed speed. - Dual Stainless-Steel Conveyor Chains
The dual conveyor chains on the spreader deliver a precise, consistent flow of fertilizer to the spinners. The chains are made from 304 stainless steel for maximum durability and corrosion resistance.
The F1210 can be equipped with a dual variable-rate conveyor drive option that allows the spreader to independently adjust the rates of the left and right sections for precision application. - Dual Stainless-Steel Spinners
Dual stainless-steel spinners produce a consistent spread pattern from 40 to 90 feet wide. - 41-Inch Frame Clearance
A 41-inch frame clearance allows the spreader to be used for in-season applications in row crops. - Adjustable Wheel Spacing
The wheels are adjustable from 80 to 120 inches wide to accommodate a variety of row spacings. 90- to 152-inch adjustable wheel spacing is optional. - Obstruction-Free Interior
The 409 stainless-steel hopper is smooth with a 50-degree slope, minimal flat surfaces and no internal gussets or plates to accumulate fertilizer. This results in a much cleaner system that maximizes material flow and helps prevent corrosion. - Single Bearing Design
One bearing part number for all driveline components on the machine greatly simplifies the maintenance and replacement process. - Adjustable Hitch
The hitch has a moveable clevis to accommodate a wider range of drawbar heights, and allows for leveling of the spreader. The hitch is also integral to the frame, while the suspension pulls from the hitch to lower the amount of frame stress. - Integral Lights
- Wheel/Tire Options
A variety of wheel and tire options are available, including duals. - Optional Integral Scale
Closely monitor application rates and the amount of material remaining in the hopper with the integral four-point scale option. - Optional Roll Tarp
An optional roll tarp can be installed to protect material within the hopper from weather elements. - Optional Steerable Hitch
A steerable hitch provides maximum control of the spreader on sidehills and turns. - Optional Hydraulic Fixed Spinner Drive
Specifications
| Model | FB1210 |
| Spread Pattern (Dual) (Hydraulic) | 40' - 90' |
| Hopper Capacity (Struck) | 398 cu. Ft. |
| Hopper Capacity (Heaped) | 499 cu. Ft. |
| Weight (Empty) | 7,000 lbs. |
| Max Gross Weight | 28,800 lbs. |
| Frame/Crop Clearance | 41 in. |
| Overall Length | 246" |
| Overall Width | 99" - 135" |
| Overall Width (With 90-152 Spacing Option) | 99" - 167" |
| Overall Height | 120.5" |
| Hopper Length | 155" |
| Hopper Width | 99" |
| Hopper Depth | 57" |
| Tires (Standard) | 380/90-R46 |
| Axles/Suspension | 6x6 in. - infinitely adjustable from 80"-120" or 90"-152" |
| Frame | 1/4", hot-rolled sheet, channel-formed |
| Hitch | 1/4", hot-rolled sheet, channel-formed |
| Drawbar | Bolt-in, adjustable position |
| Hopper | 12-gauge, 409 stainless steel |
| Skid | 12-gauge, 409 stainless steel |
| Gate | 7-gauge, 409 stainless steel |
| Conveyor Chain | 7" wide, 304 stainless steel with 1x1 in. mesh |
| Spinner Dish | 19" dia. 7-gauge, 409 stainless steel |
