Loftness 240

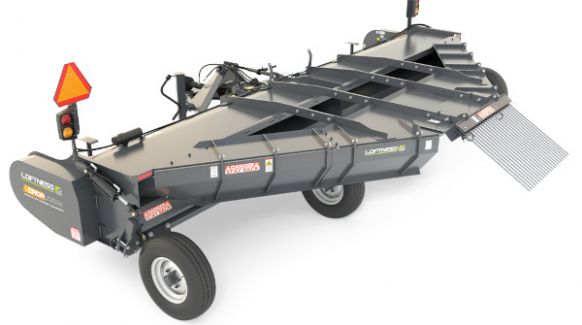

Windrower 15/20 Center Discharge Shredder 240
Overview:
A Better Way to Bale Your Stover
Hay rakes make dirty windrows. The Loftness center discharge shredder, however, efficiently creates clean windrows for baling.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Heavy-Duty Construction
The windrowers feature heavy-duty design, engineering and construction throughout. - 280-Horsepower Gearbox
A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. It spins the rotor at 1,450 RPM. - Knives
Windrower shredders are equipped with a reduced number of 4-1/2-inch-wide hard-surface cupped knives. The Windrower’s unique rotor knife pattern is designed to produce increased suction and enhance chop efficiency. Greater suction means you can operate just a bit higher, reducing the risk of striking hidden objects. This helps make the Windrower a perfect preparation tool for baling corn fodder and other kinds of residue. - Full-Length Rear Shields
This unique design from Loftness allows high-speed air and particles to flow freely to the diffuser. They can also be operated in a retracted position for non-windrowing operations. - Chop Diffuser
The grate-like diffuser deflects and directs the final chopped residue toward the ground. Combined with the rear shields, this system creates cleaner rows than those made by rakes. - Rear Lift
The Windrower offers precise height adjustment for fine-tuning performance and chop. Rear lifting choices include three ratchets or three hydraulic lift units. - 4-Groove Banded Belt
Efficient transfer of power via a four-groove banded belt and spring loaded push-type idler system. - 1,000 RPM PTO
1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch and constant velocity knuckle. - Pull-Type Hitch
- Various Wheel Options
Specifications
| Size | 20' |
| Model | 240 |
| Pull-type Height | 48" |
| Pull-type Length | 200" |
| Cutting Width | 240" |
| Overall Width | 259" |
| Hitch Length | 40" |
| Weight in Pounds | 7000 |
| Number of Knives (Cupped) | 64 |
| Number of Knives (Side-Slice) | 8 |
| Number of Rotors | 2 |
